Colour reversing camera as parking aid and for monitoring rear traffic

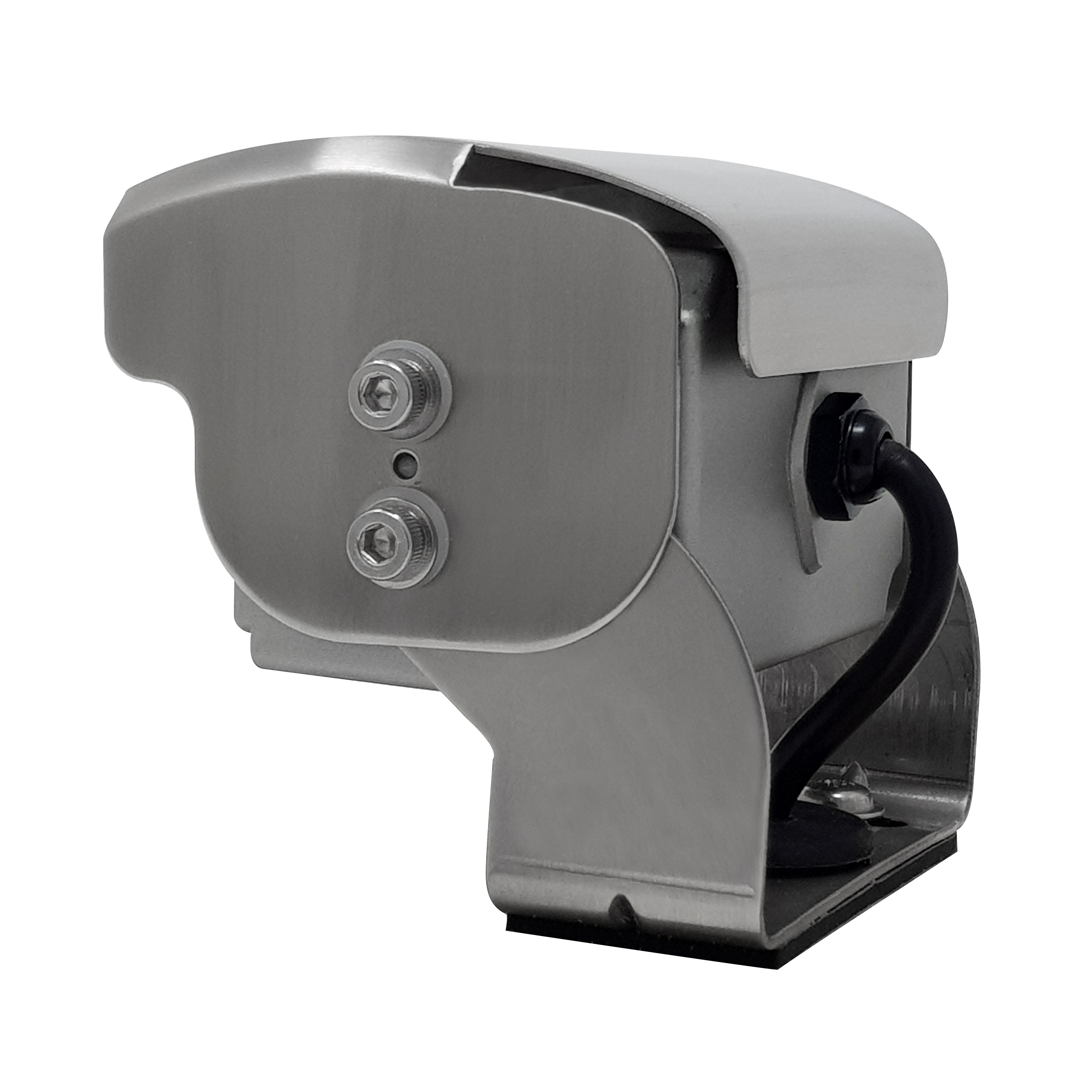

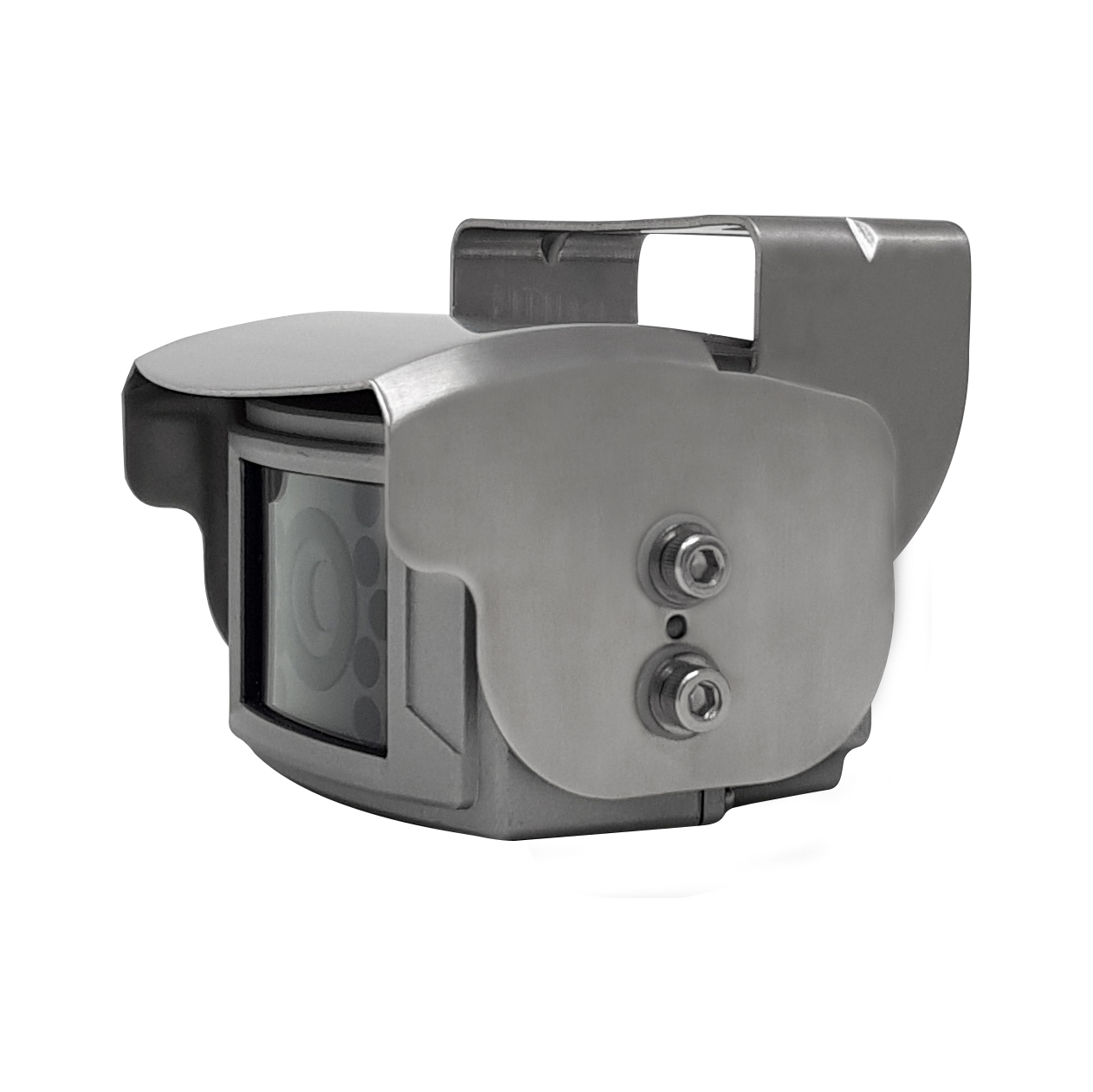

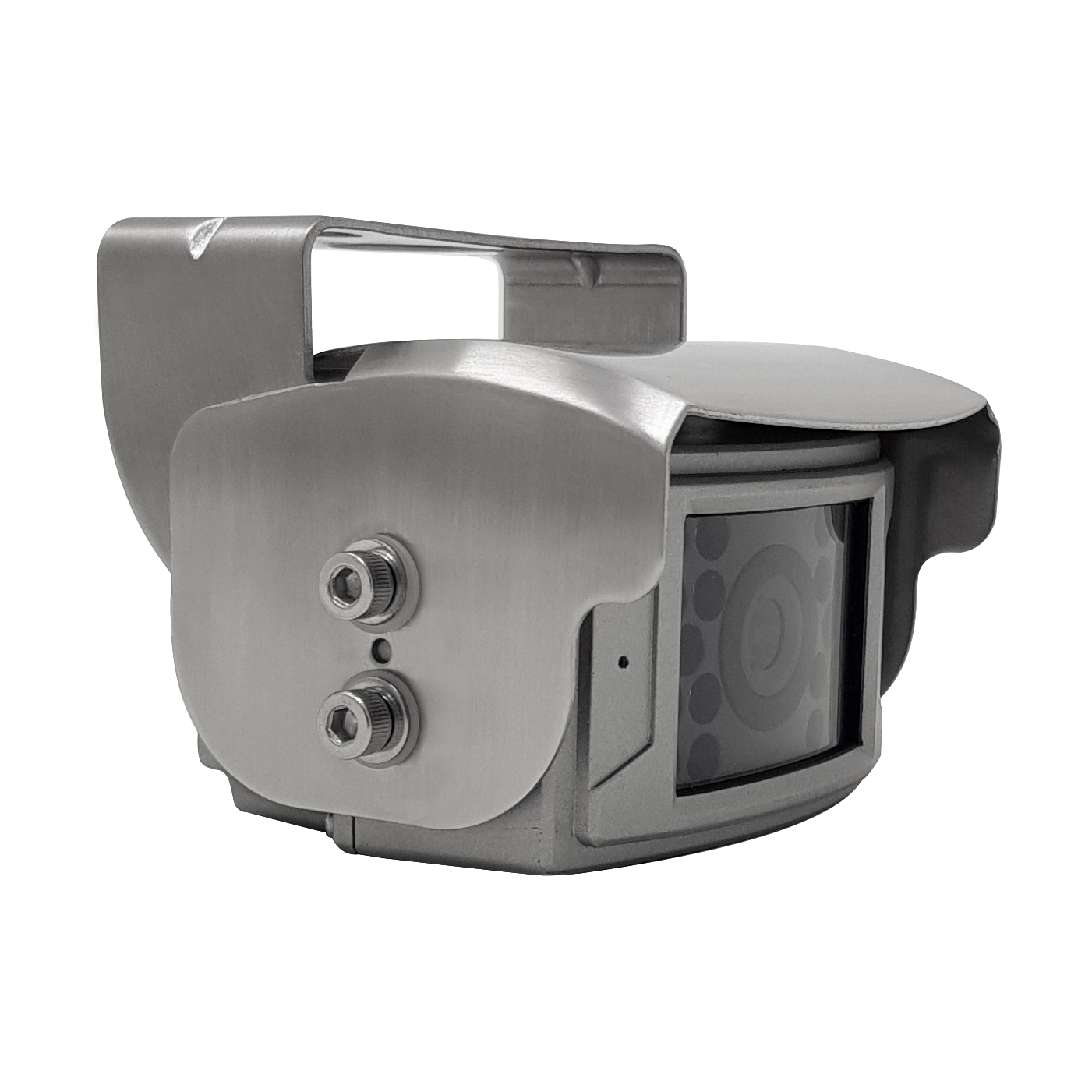

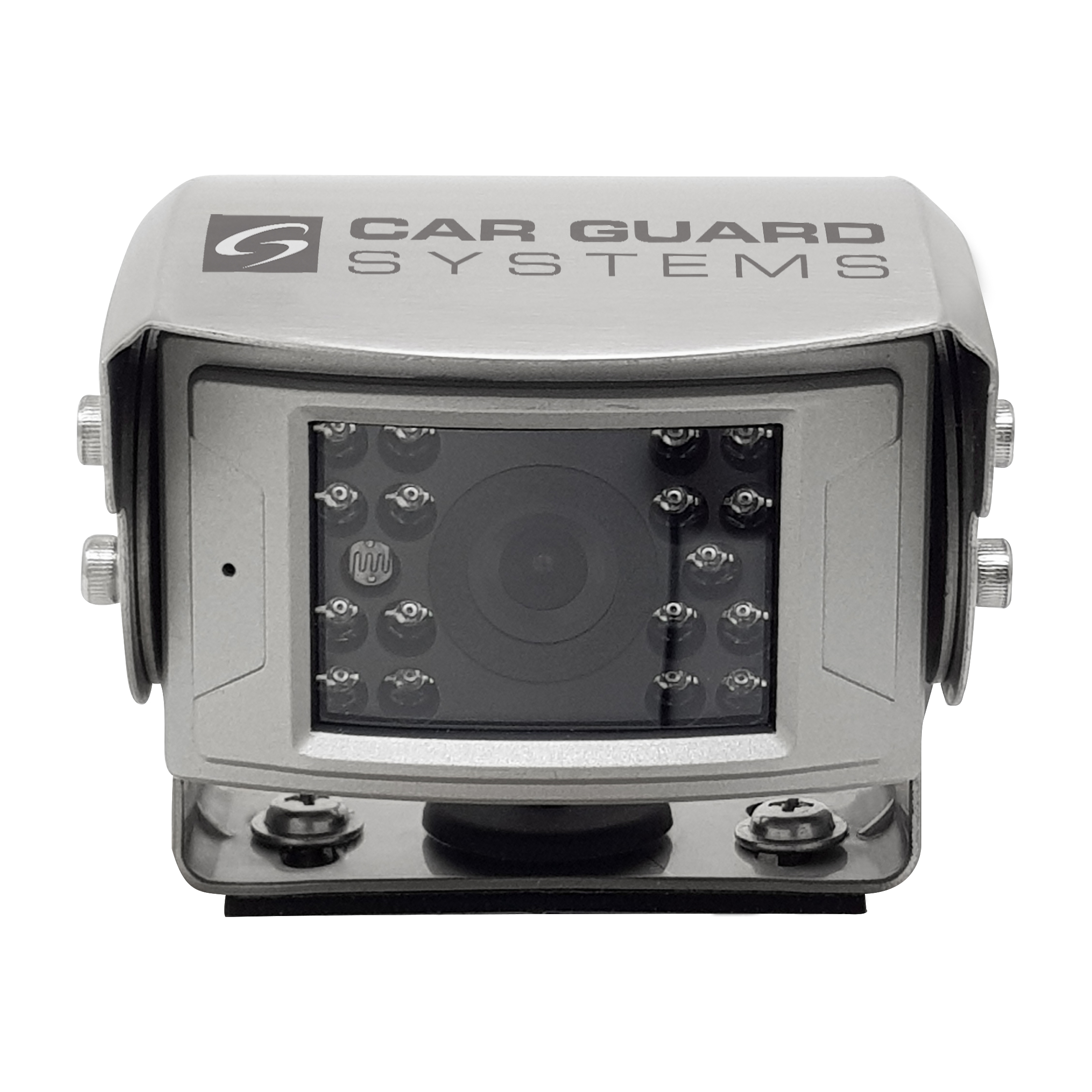

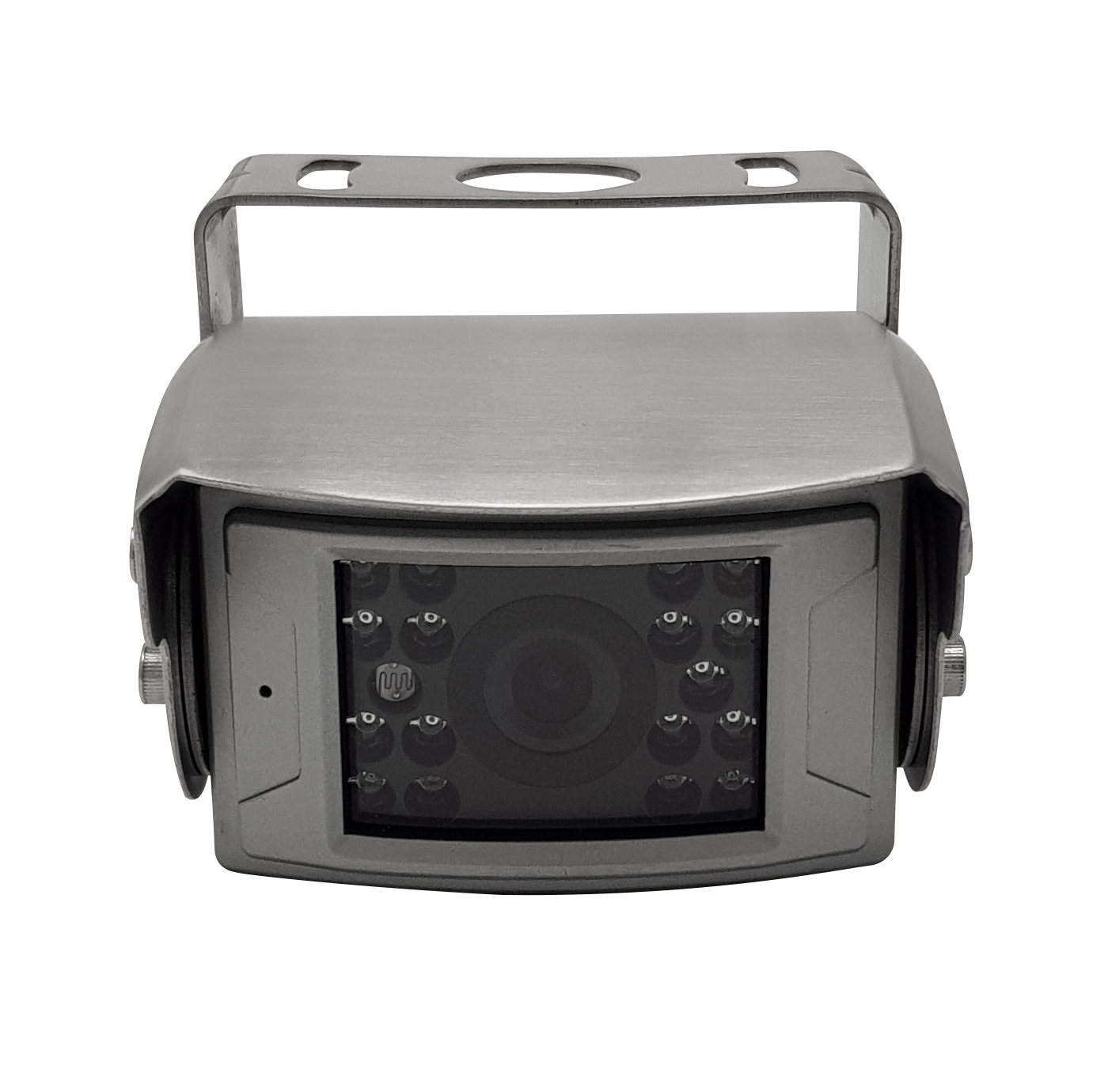

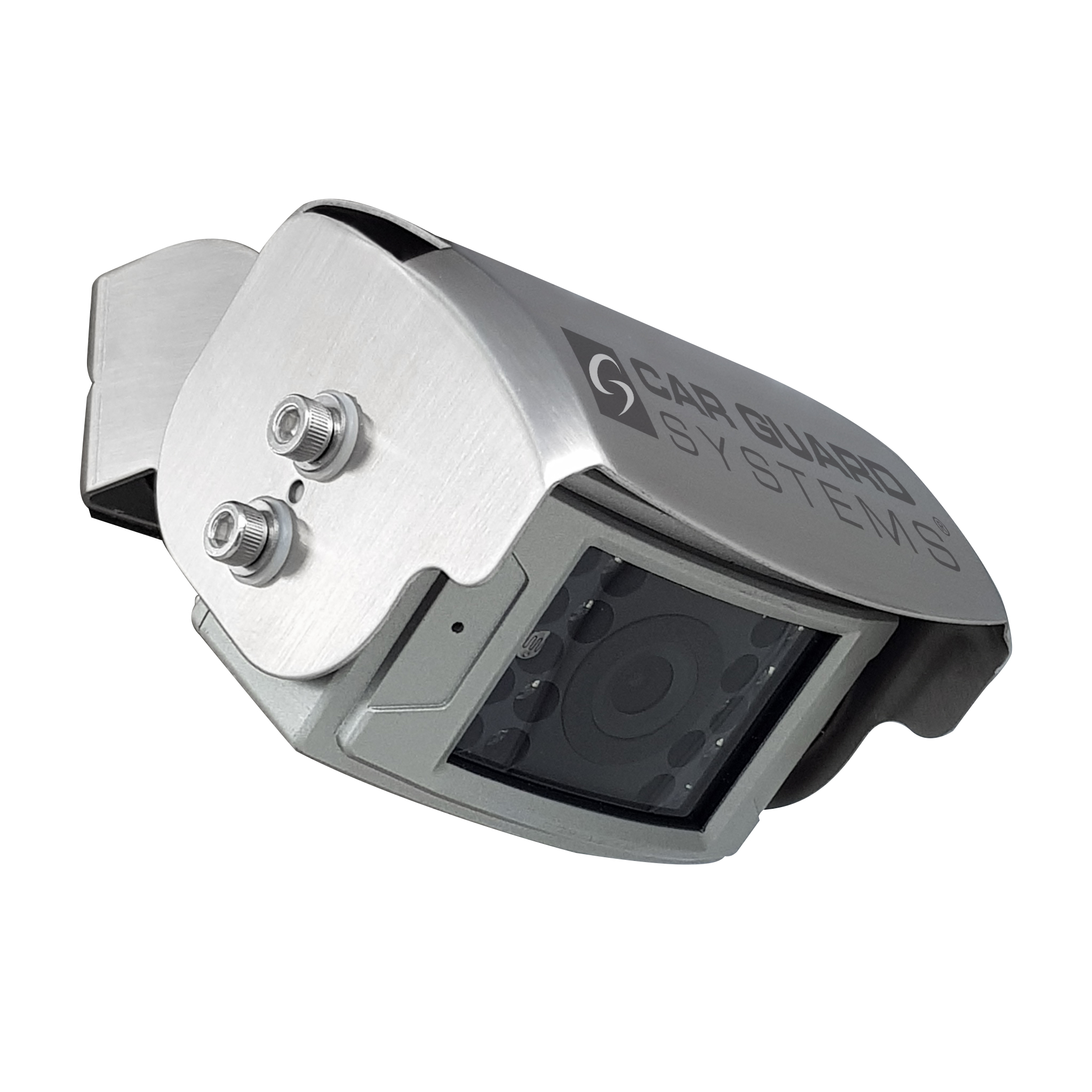

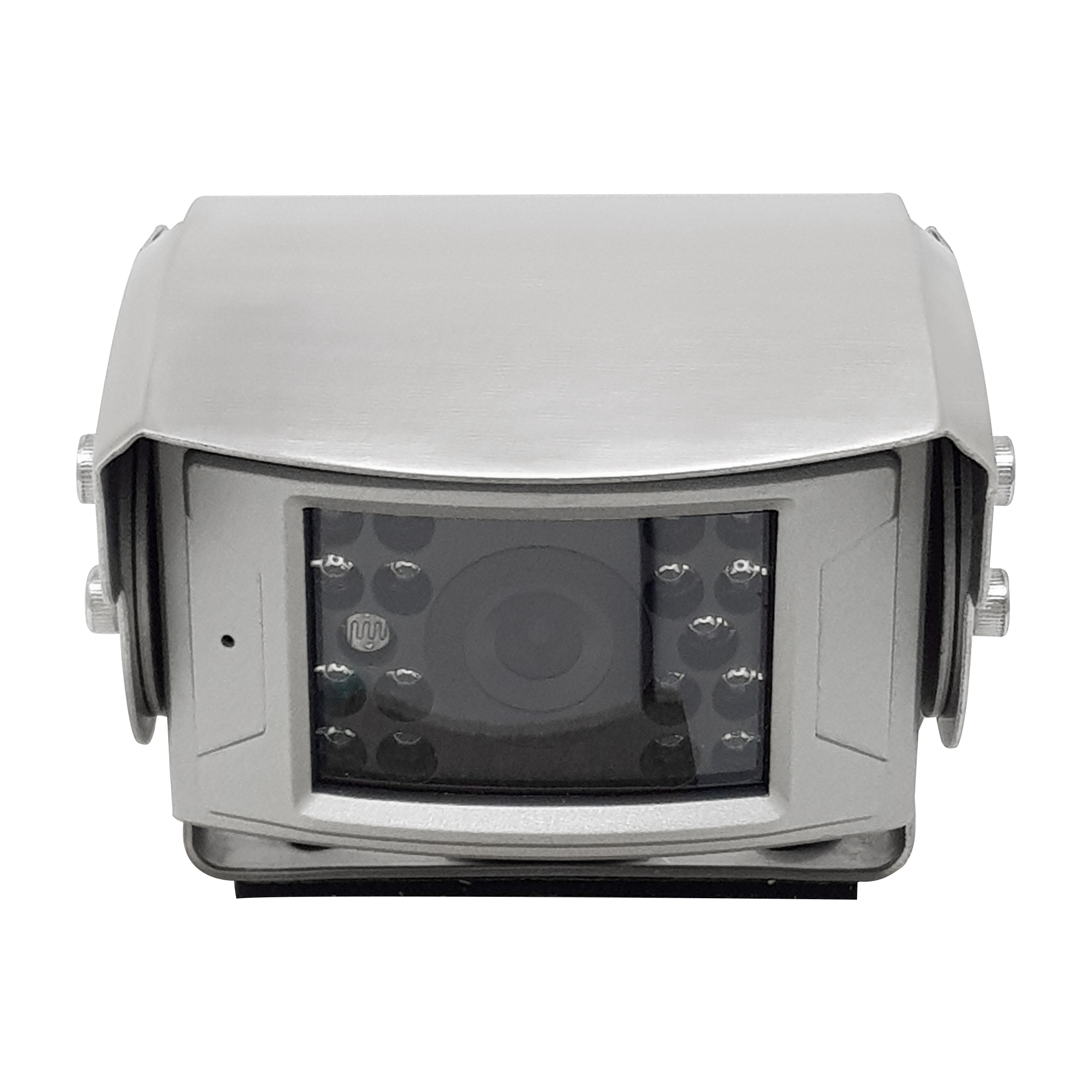

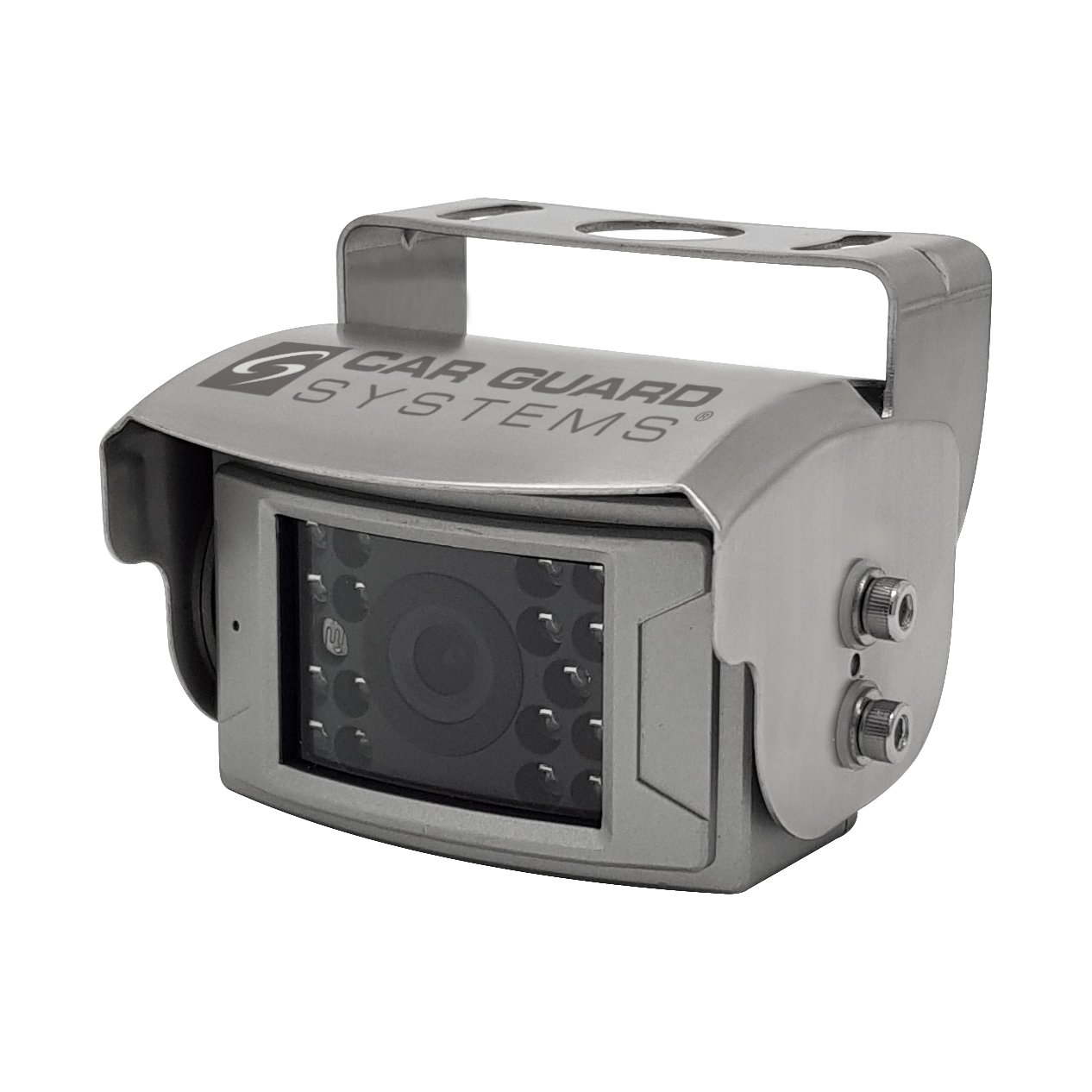

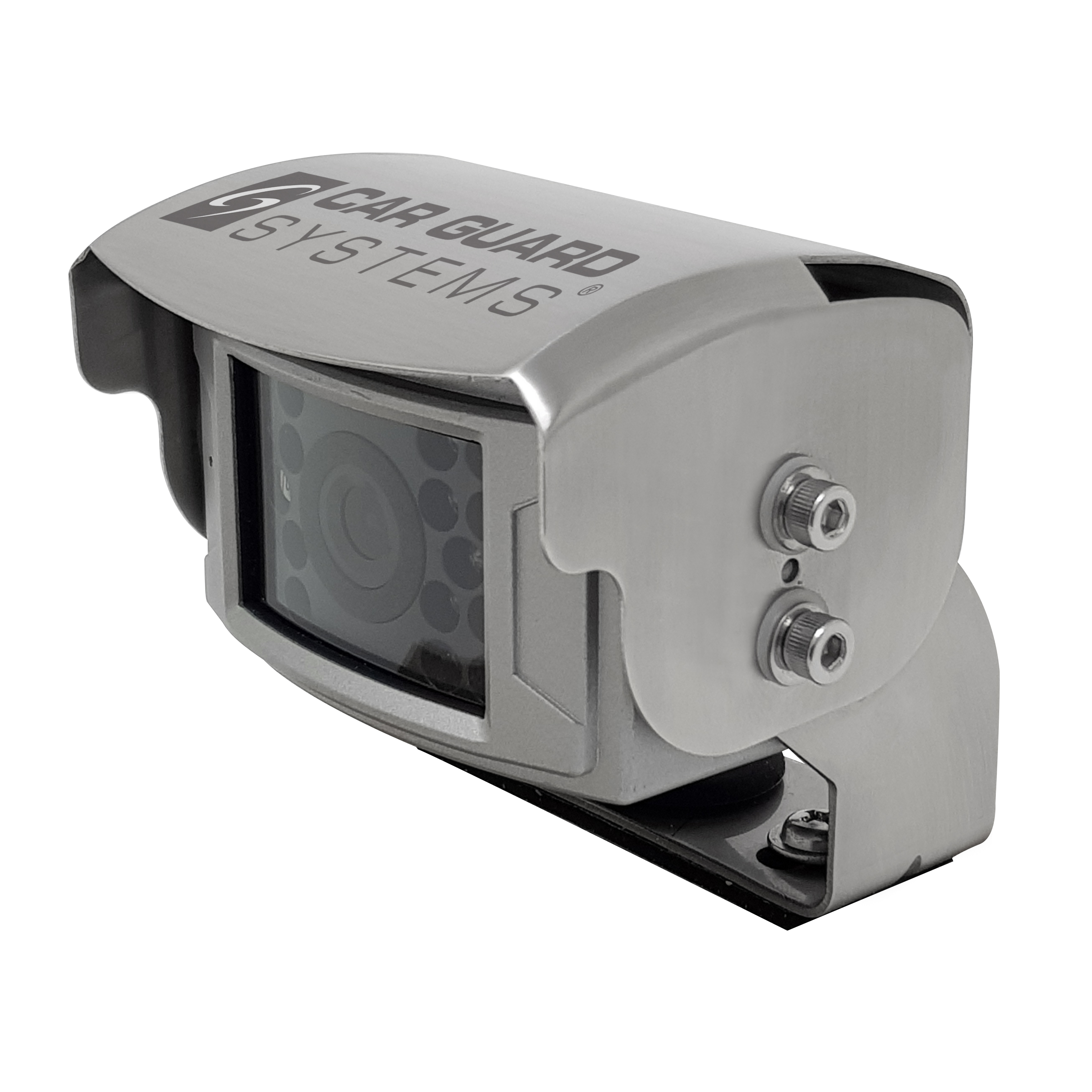

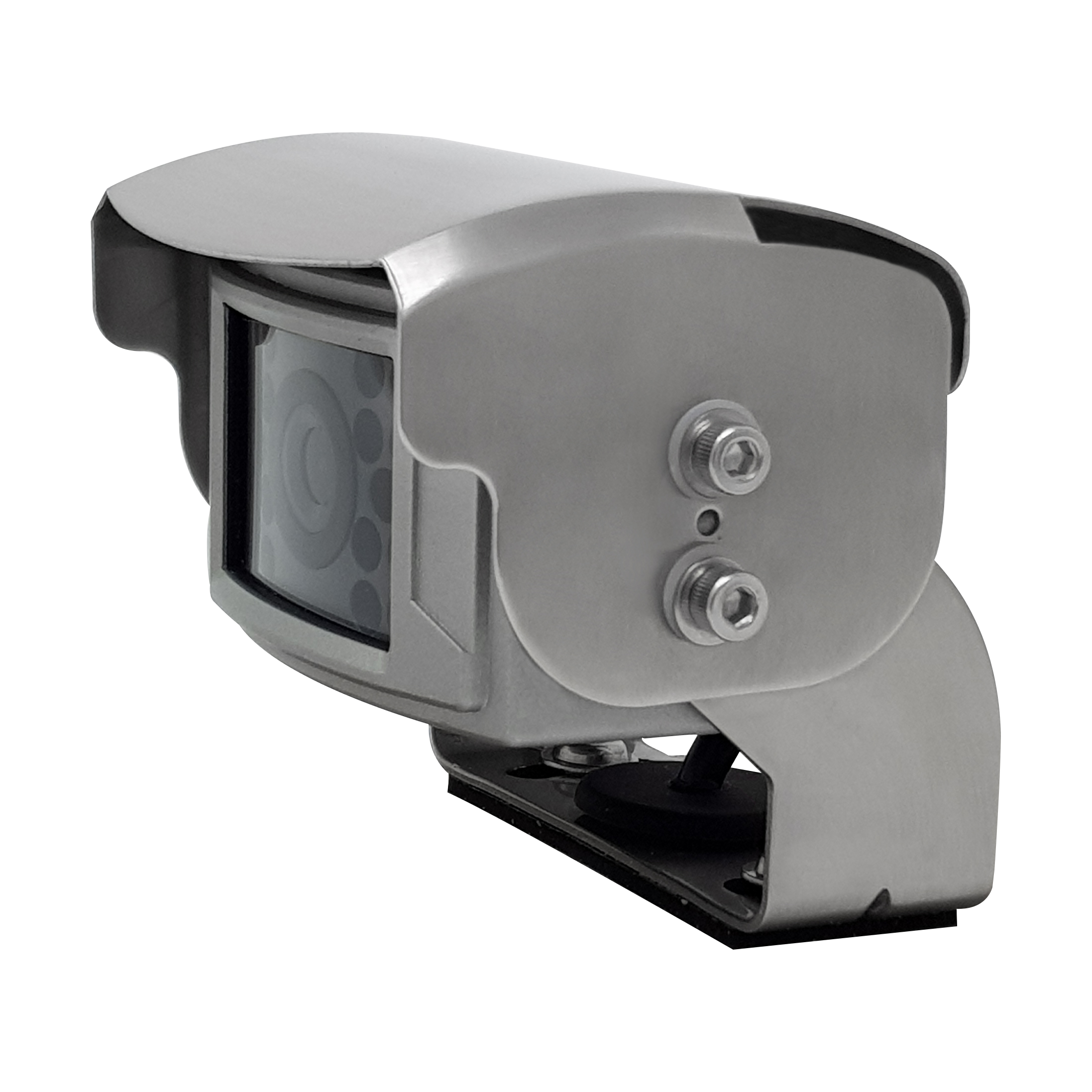

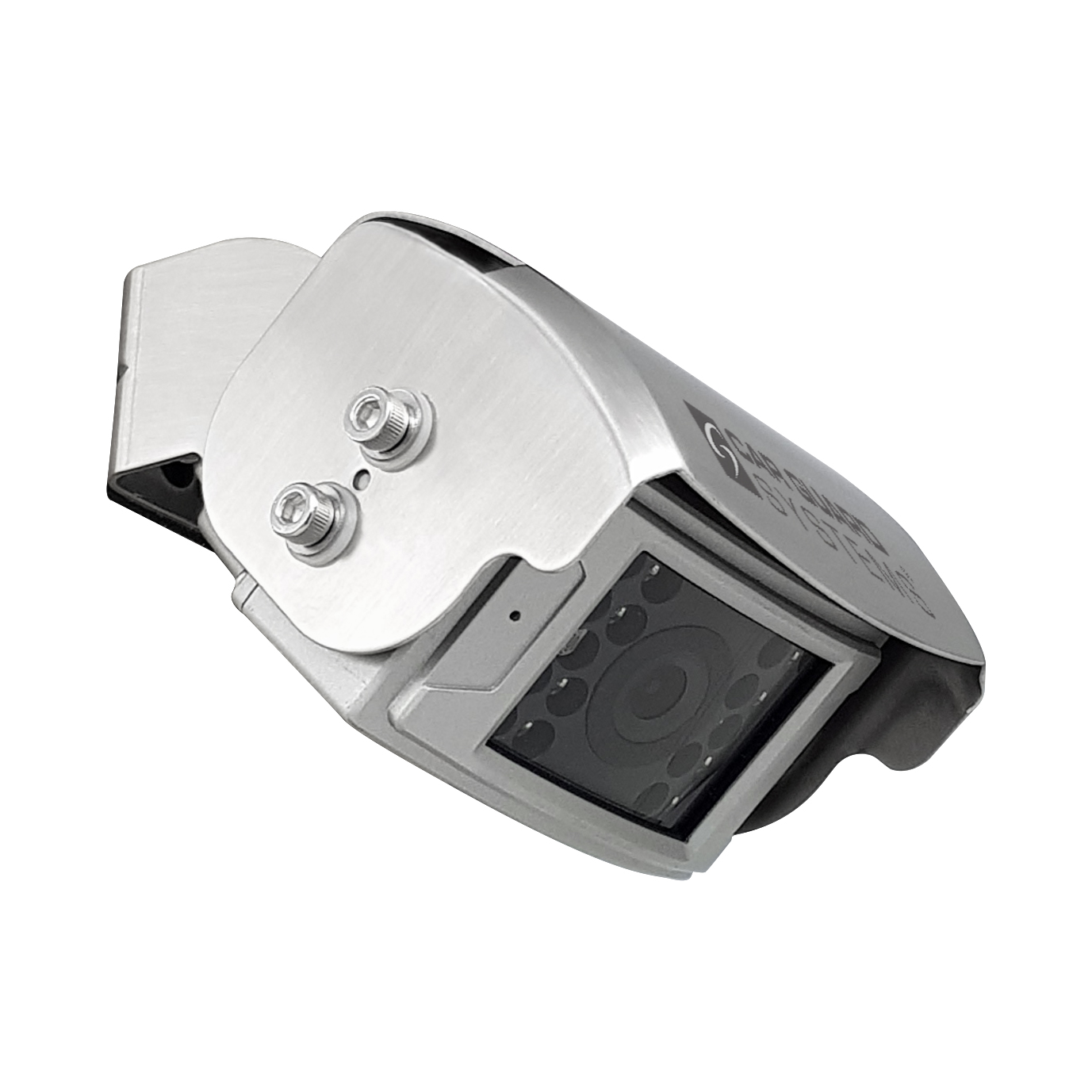

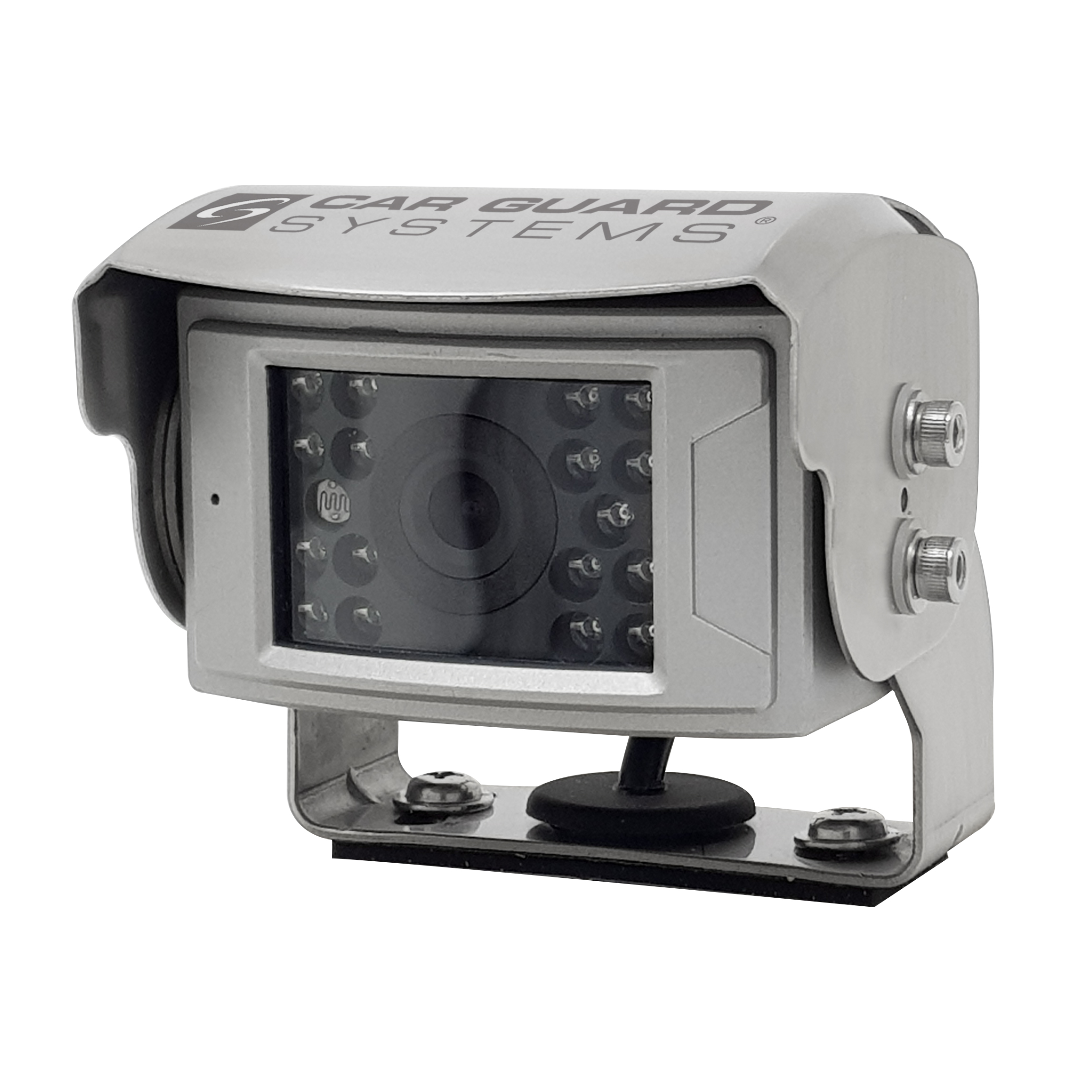

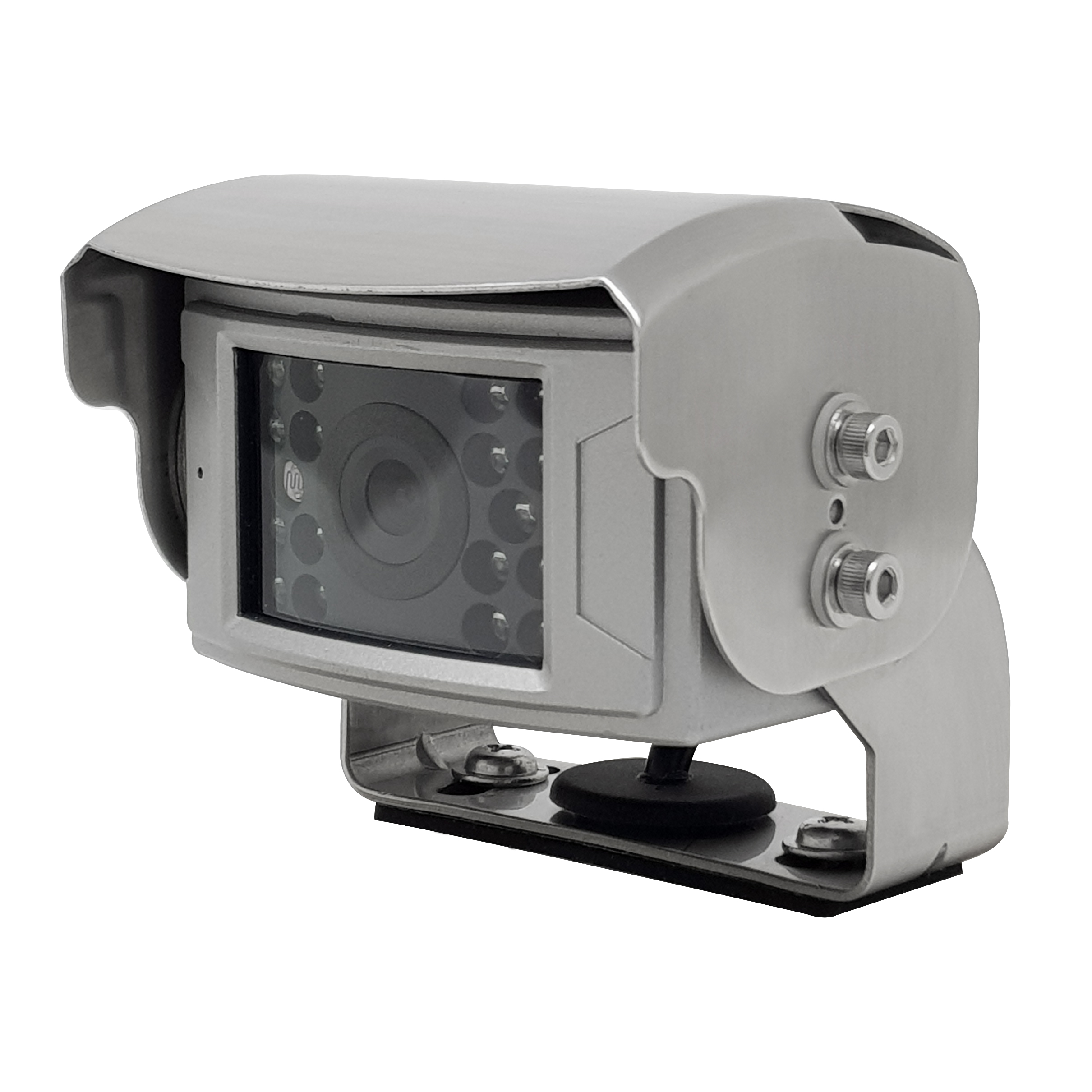

CARGUARD REAR ANGEL VIEW RAV-F reversing camera, 700 TVL, 125°, silver, 9-14V, PAL

Functional description:

With our extremely high-quality and hard-wearing reversing cameras, you can upgrade multimedia systems and standard OEM navigation systems from numerous manufacturers to a fully-fledged reversing video system. We have the right adapter for almost every vehicle model.

Many of our navigation models have a camera input. Our AHD monitors are suitable for the Full HD versions.

The camera image is displayed on the screen as soon as reverse gear is engaged. For the use of multiple cameras, we offer various switch boxes customised to your needs.

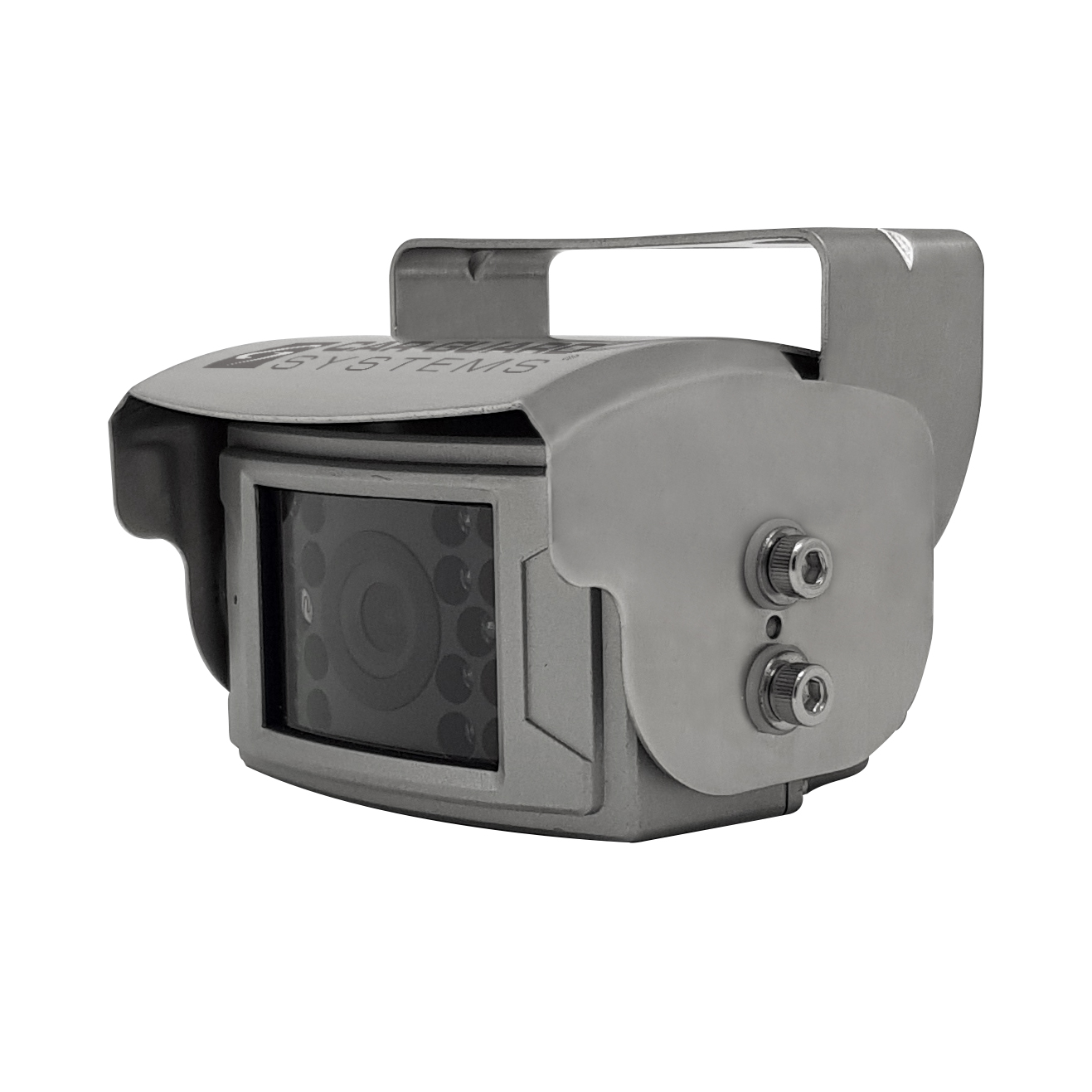

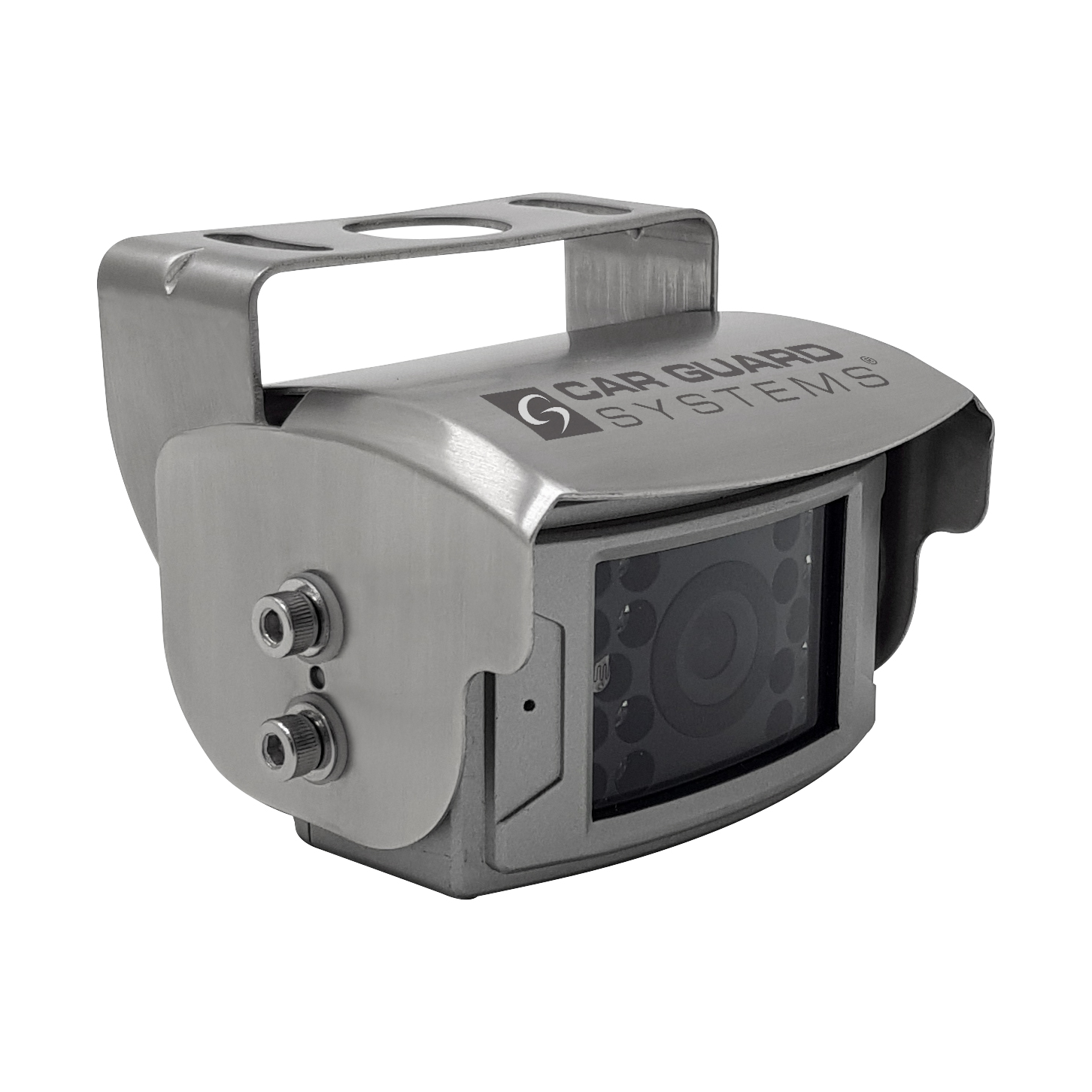

The ingenious design allows any installation position: overhead on the ceiling, on the wall or on the floor. The camera connection cable is invisible and can be installed completely waterproof.

Device information:

Outstanding resolution: 610,000 pixels with 700 TV lines
Power supply: DC 9-14V +/- 10%
Lens detection range: 85° (vertical) / 100° (horizontal) 125° (diagonal)
Designed according to protection class IP69K, the highest protection standard for vehicle components
Protection against water with high-pressure cleaners
Protection against permanent submersion
Protection against foreign bodies: absolutely dust-tight
Protection against contact and shocks
the powder-coated silver die-cast aluminium housing is additionally protected by a corrosion-free sun shield and a 2 mm thick, torsion-resistant stainless steel mounting base
extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain
Waterproof screw connections
Image sensor size: 1/3 inch Sony CCD 810
Fast image transmission in real time
17 infrared LEDs of the highest quality guarantee a very good image even in the dark
Night vision up to 12 m
Light sensitivity: 0 lux (with IR at night), 0.1 lux (during the day)
Vibration-resistant up to 10G
Shockproof up to 100G
Built-in microphone
Heating against condensation: active below 10° Celsius
automatic backlight compensation
automatic brightness and white balance
TV system: PAL (NTSC available on request)
anti-fog lotus coating
Focal length: f= 2.8 mm
Sensor detection range: 4.9 mm (H) x 3.7 mm (V)
Power consumption: < 2.5 W
No voltage connection required at the rear of the vehicle
Video signal output: 1 Vp-p, 75 Ohm
Power consumption during operation: 88 mA during the day, 128 mA at night, maximum: 535 mA
Operating temperature range: -20° C to 75° C, max. relative humidity 95%
Standing temperature range: -40° C to 80° C, max. relative humidity 95%
Scanning system: 2:1 interlace
Synchronisation: internal
Horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz
Vertical synchronisation frequency: 50 Hz / 60 Hz
Gamma: 0.45
Gain control: automatic
Signal-to-noise ratio: 48 dB
Electronic shutter speed: 1/50 (PAL) ~ 1/100,000 s

Product dimensions and weight:

Product dimensions (LxWxH): 77.9 x 71.3 x 70 mm
Weight: 320 g

Logistics:

Item number: RUF43413P
EAN: 4260456384741
Packaging weight: 1320 g
Packaging dimensions: 298 x 170 x 86 mm

Certificates:

IP69K watertightness and dust resistance test (for high pressure/vapour jet cleaning, specific for road vehicles)
Salt vapour test certificate
ROHS
CE
E-Mark

Scope of delivery:

Colour reversing camera (9-14V)
20 metre connection cable with 4-pin CGS screw connector
Adapter to cinch plug
Rubber sealing plate for the mounting base
Sealing ring for the cable gland
Set of screws for mounting on the vehicle (2x for sheet metal/ 2x for PVC/ 2x with thread)
Allen key
Installation and operating instructions
