Colour reversing camera as parking aid and for monitoring rear traffic

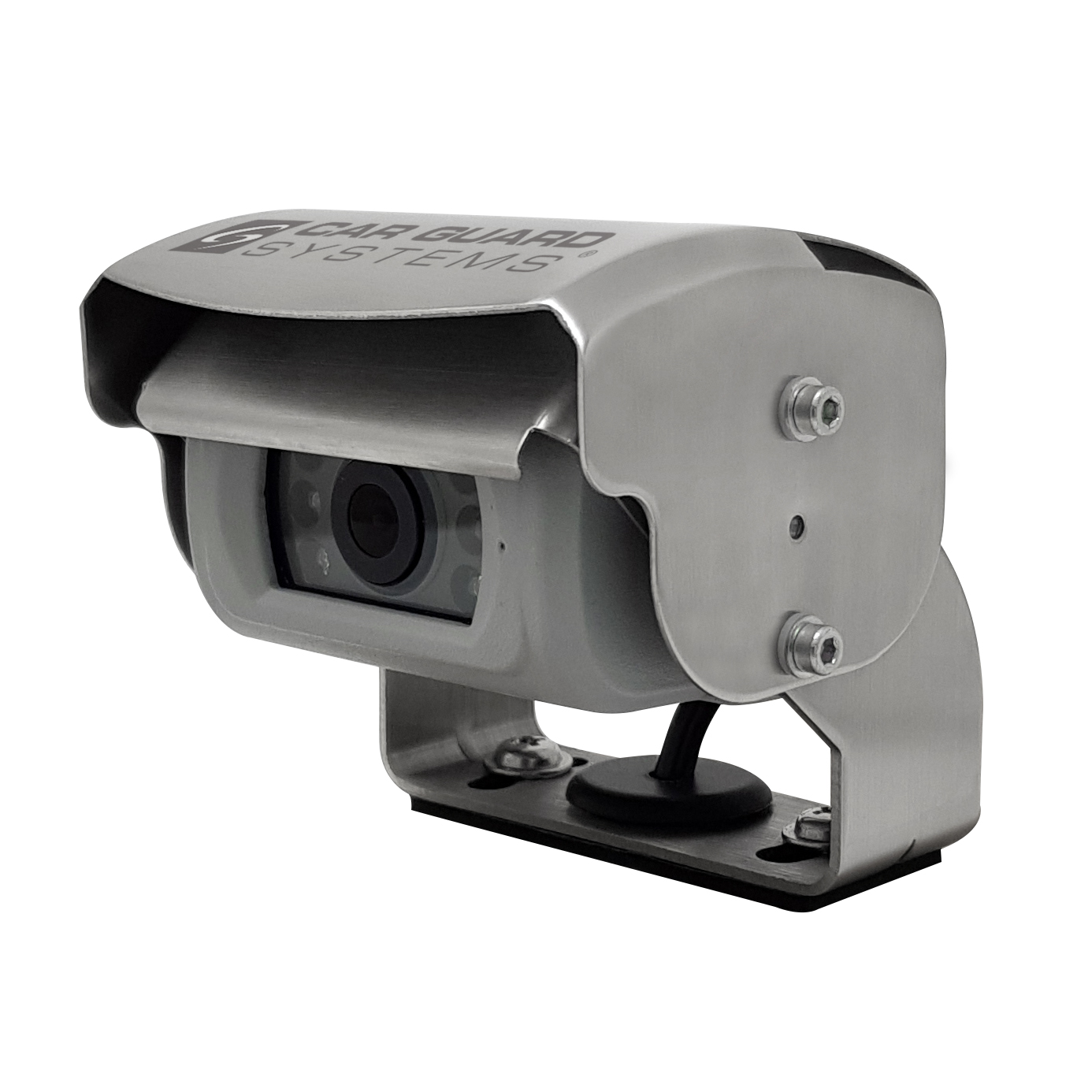

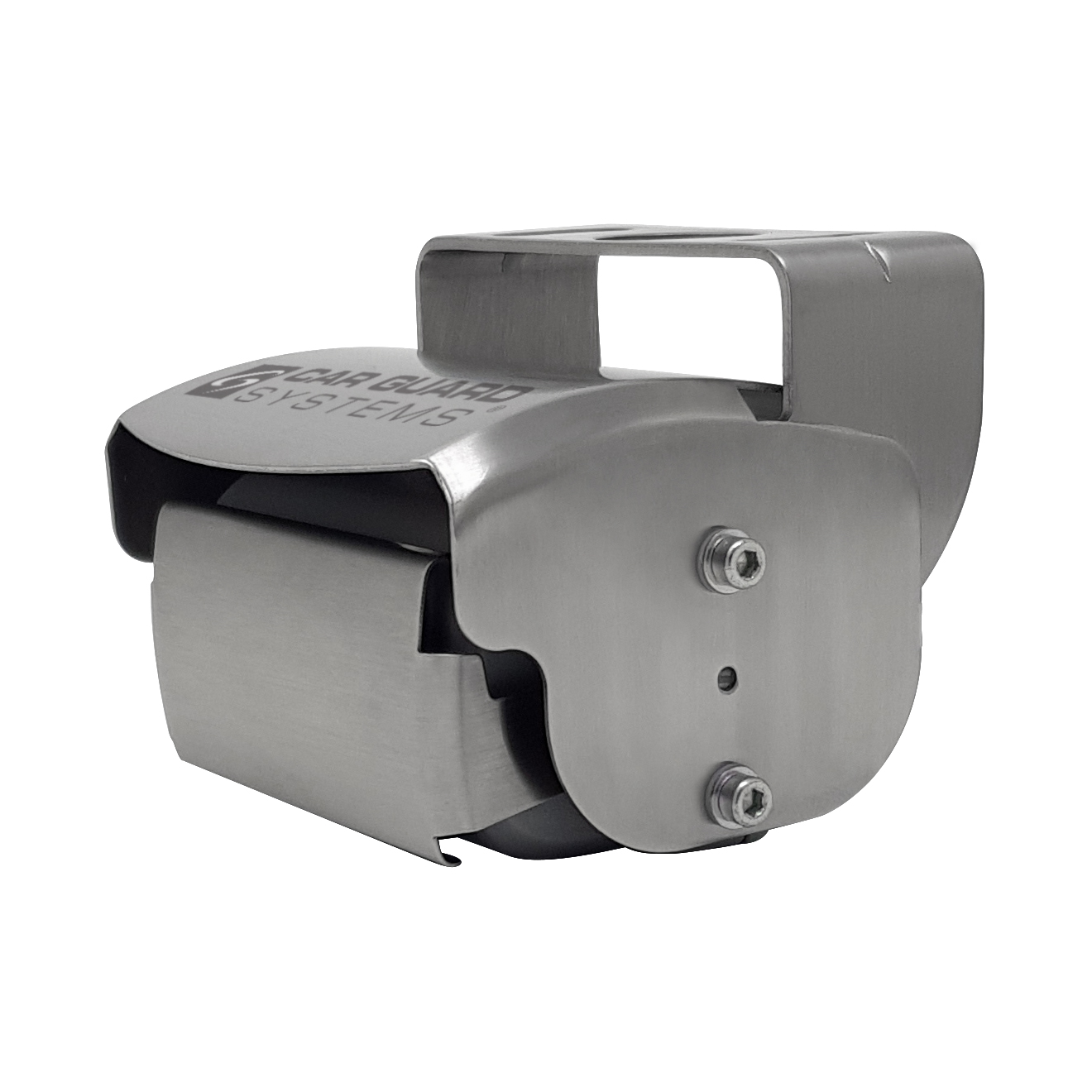

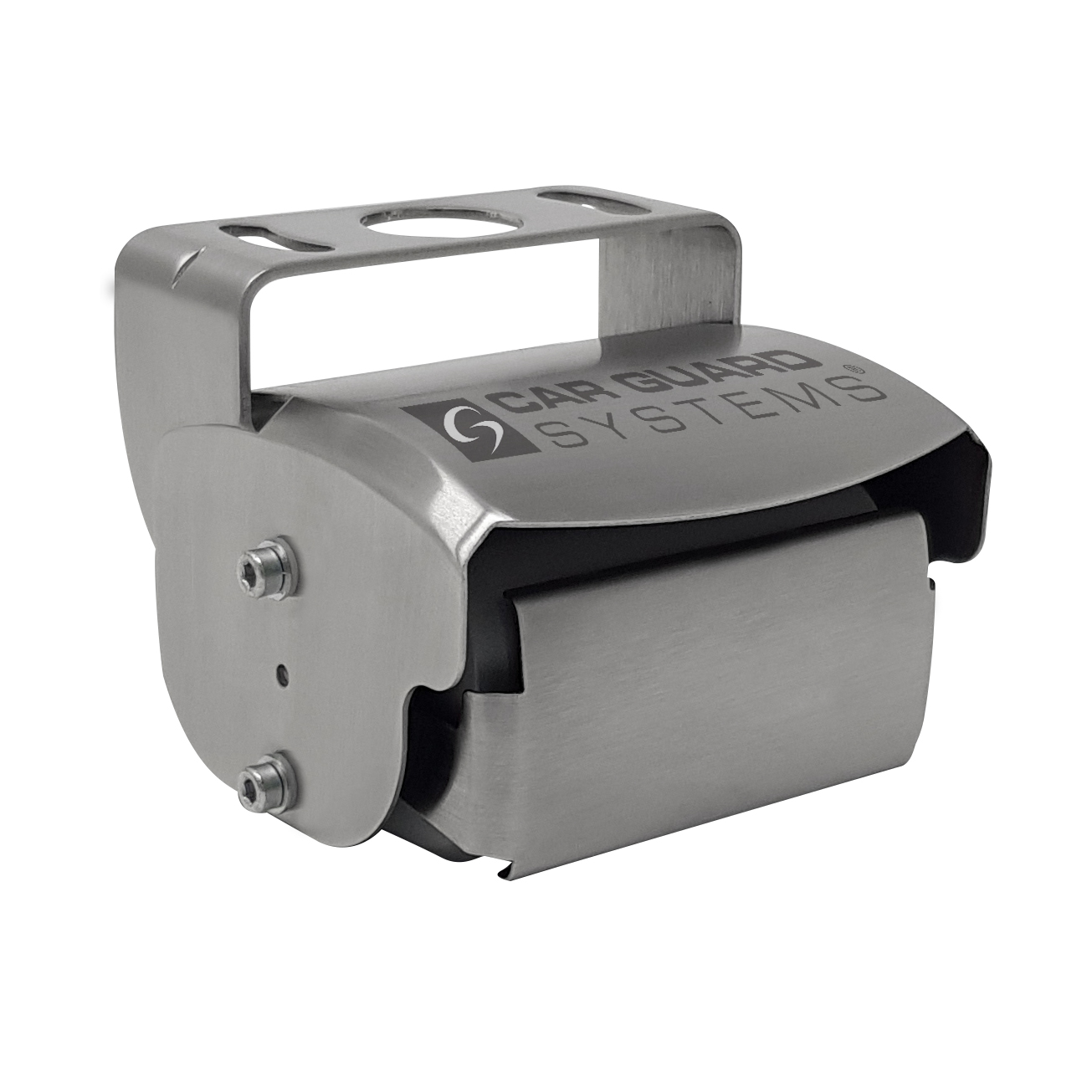

CARGUARD REAR ANGEL VIEW RAV-M Mini shutter reversing camera, 700TVL, 118°, silver, 9-14V, PAL

Functional description:

With our extremely high-quality and hard-wearing reversing cameras, you can upgrade multimedia systems and standard OEM navigation systems from numerous manufacturers to a fully-fledged reversing video system. We have the right adapter for almost every vehicle model.

Many of our navigation models have a camera input. Our AHD monitors are suitable for the Full HD versions.

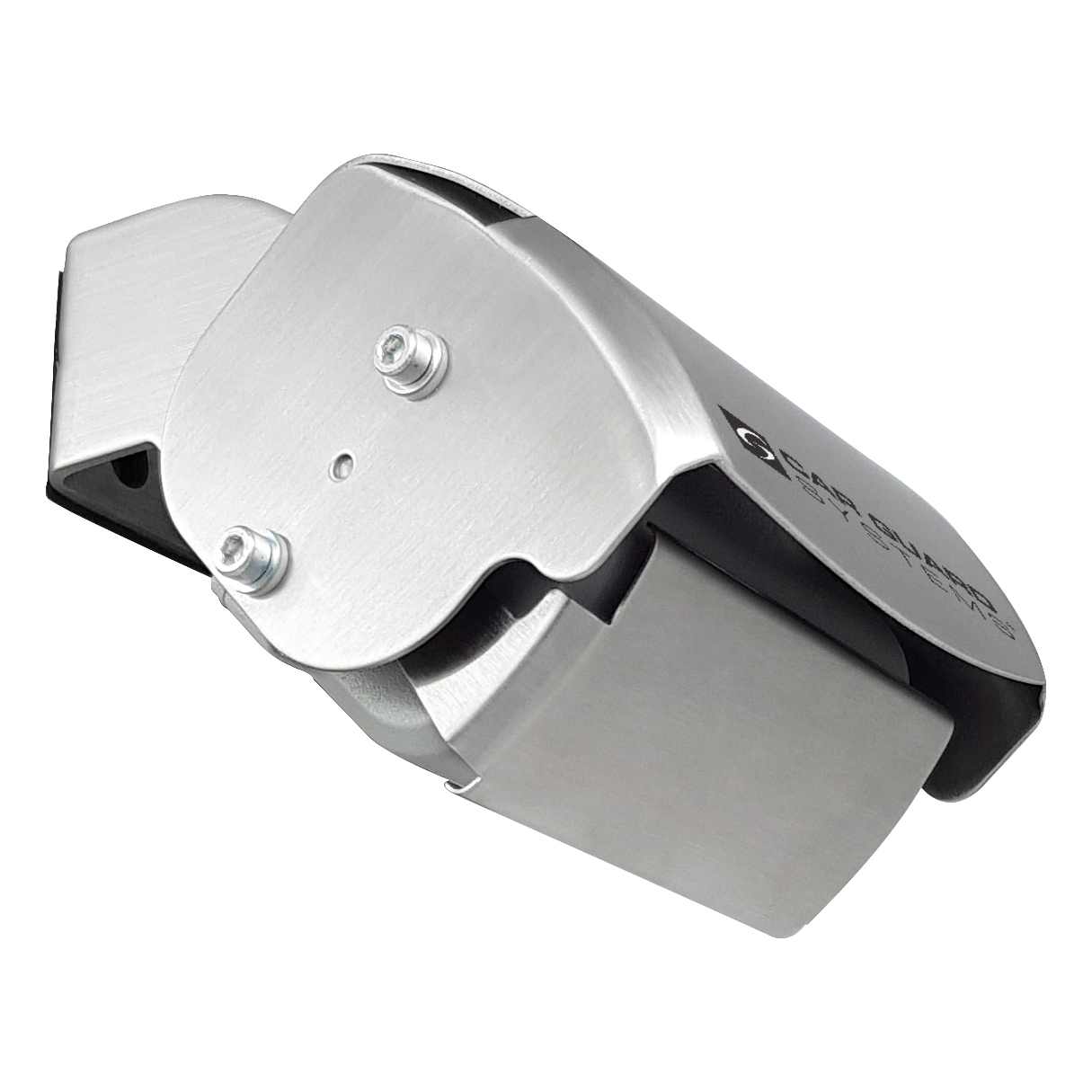

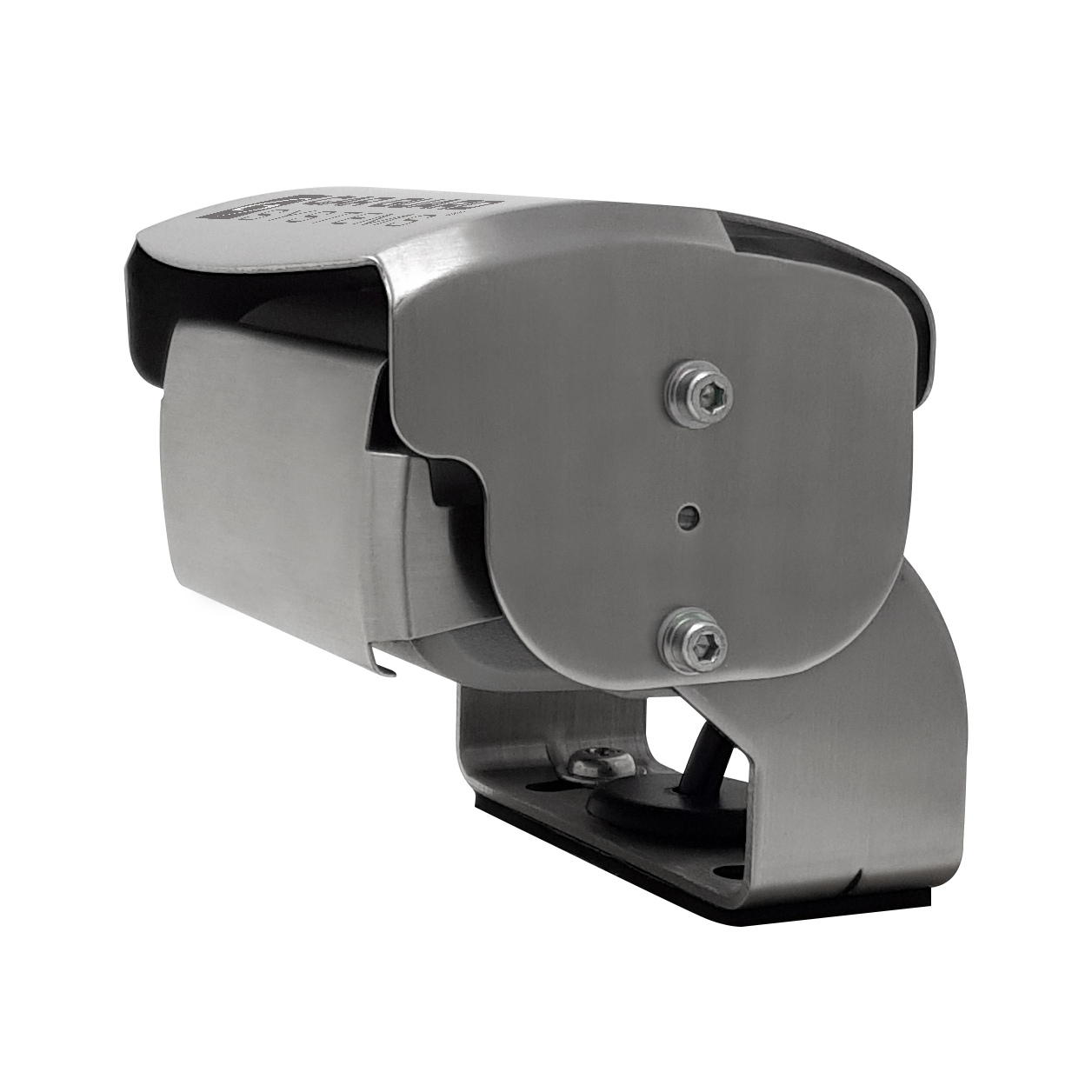

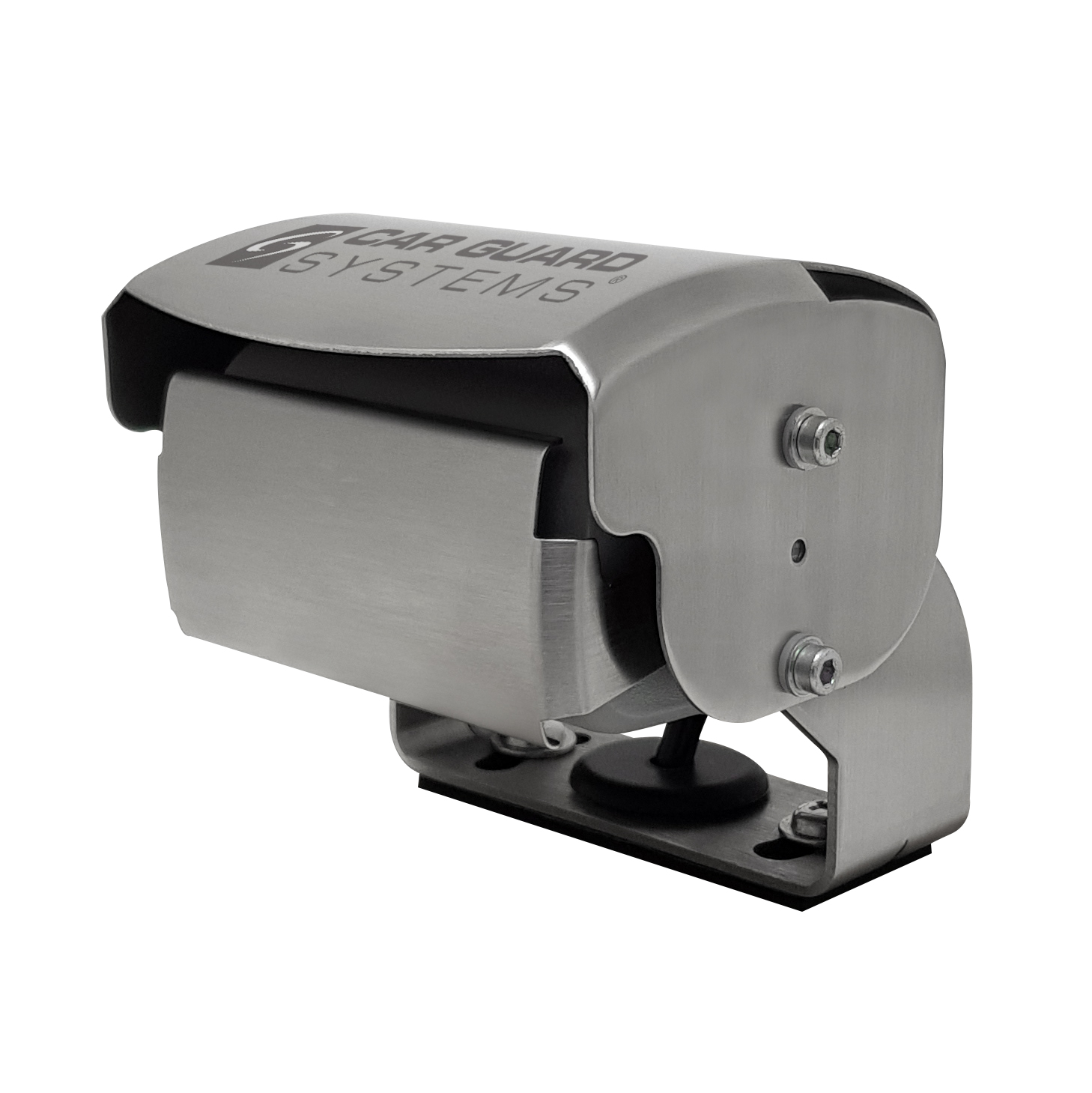

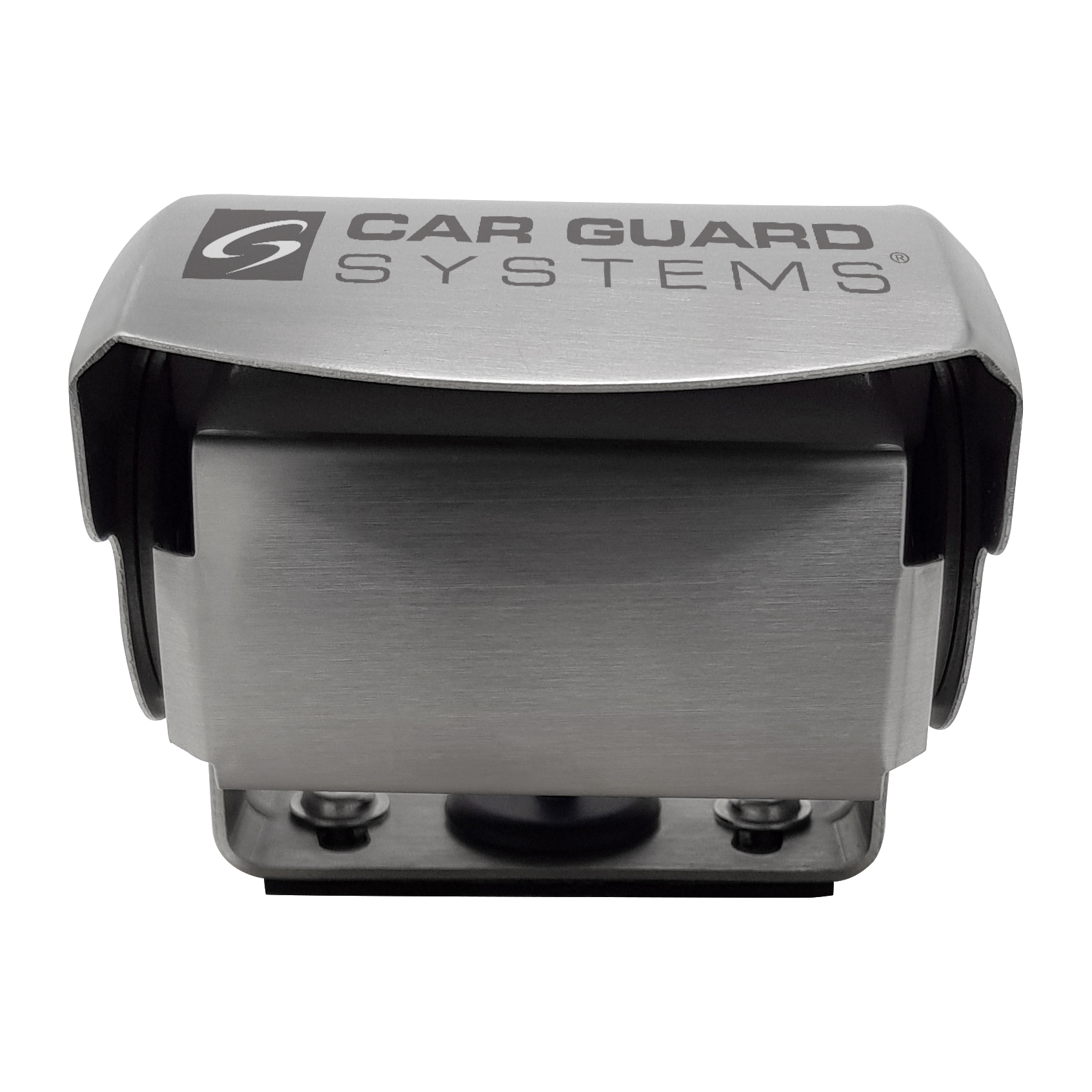

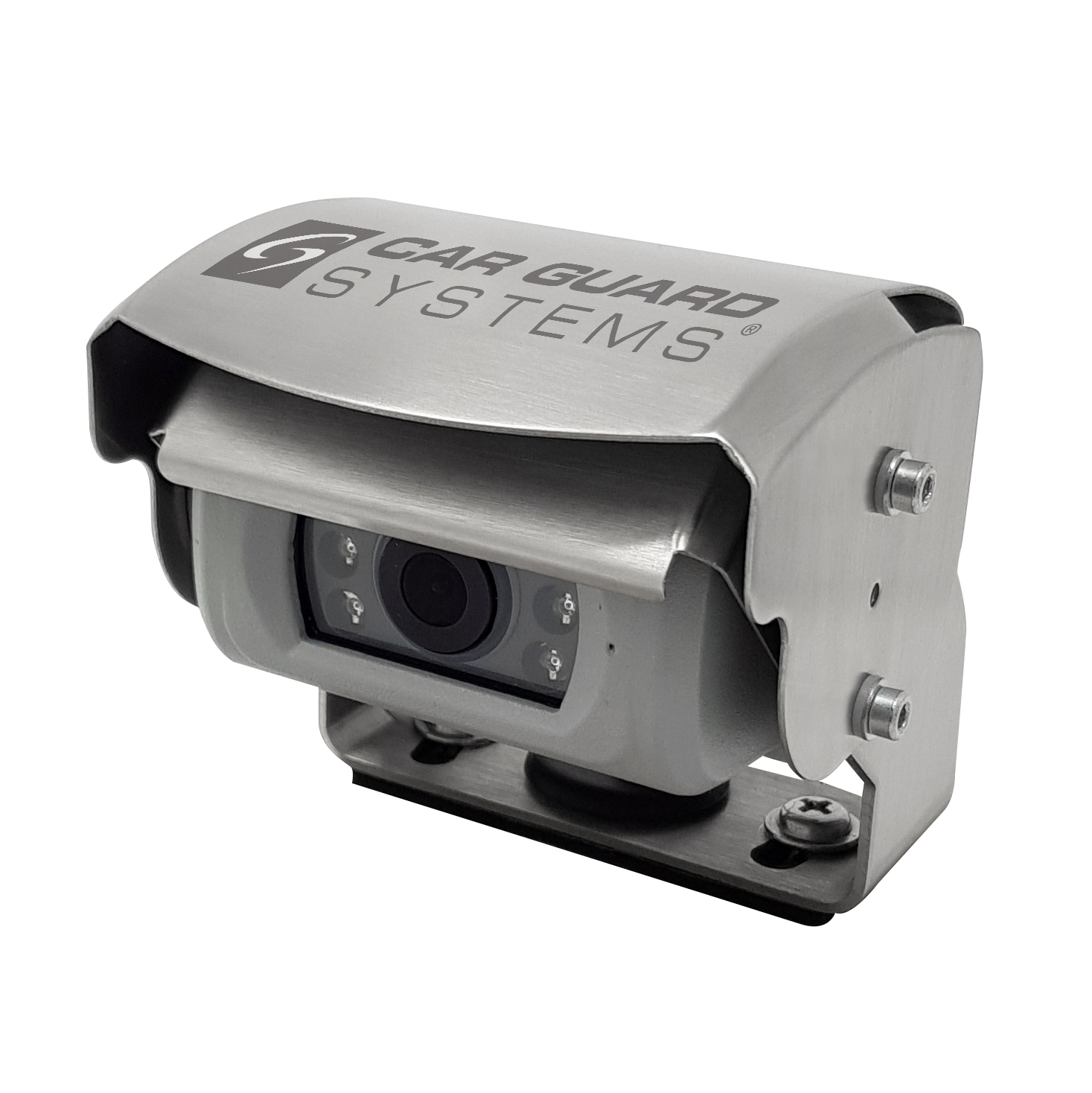

The protective flap is raised and the camera image is displayed on the screen as soon as reverse gear is engaged. We offer various customised switch boxes for the use of multiple cameras.

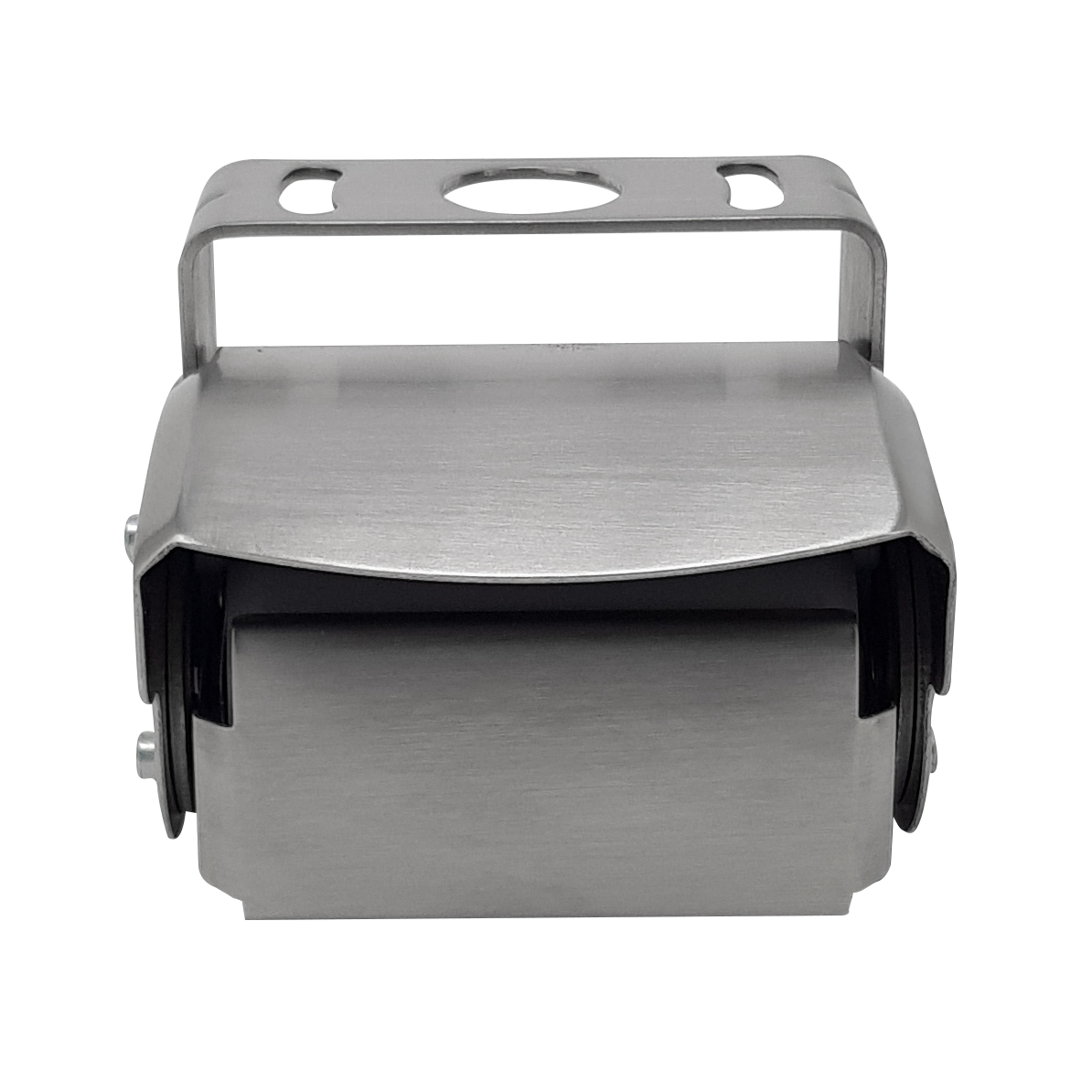

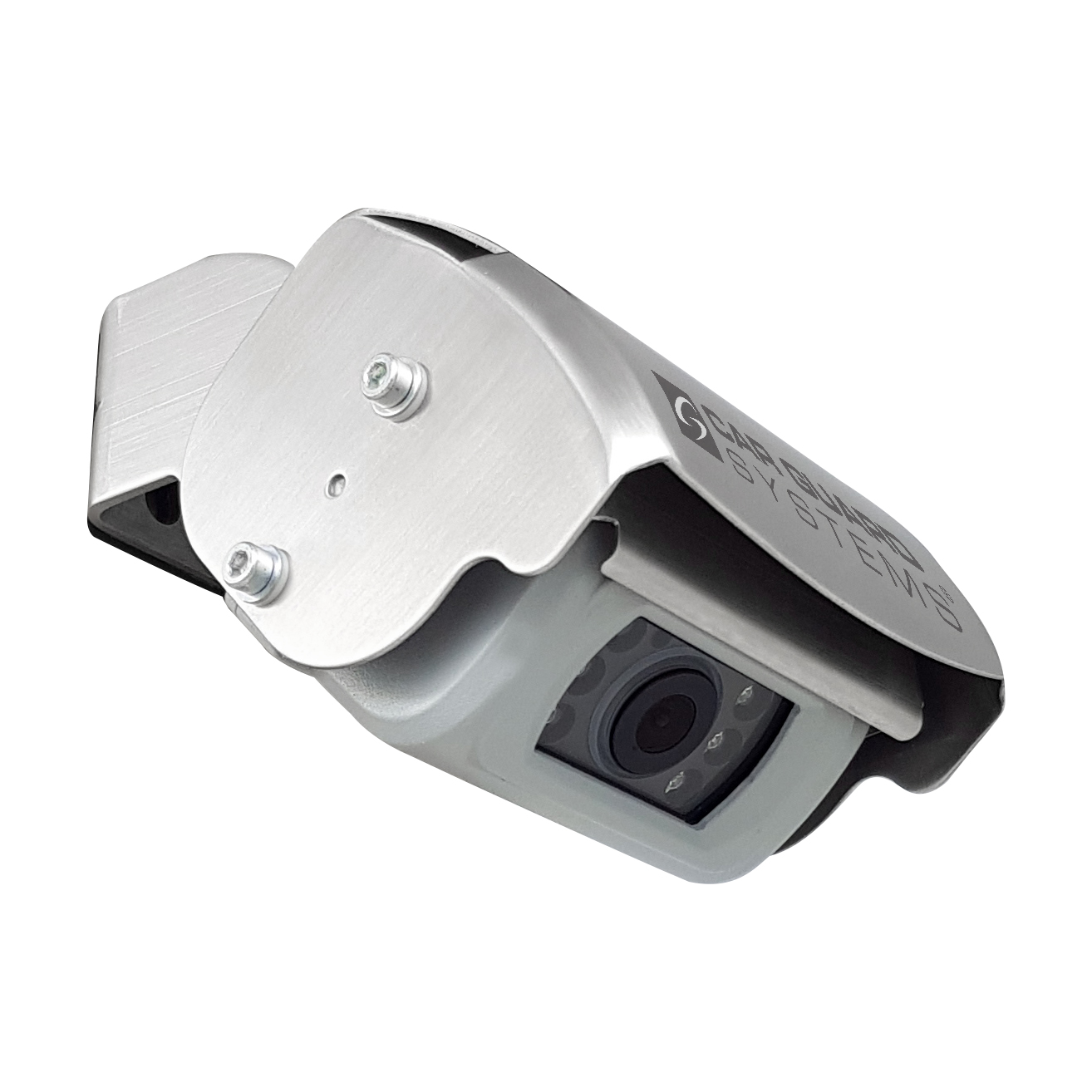

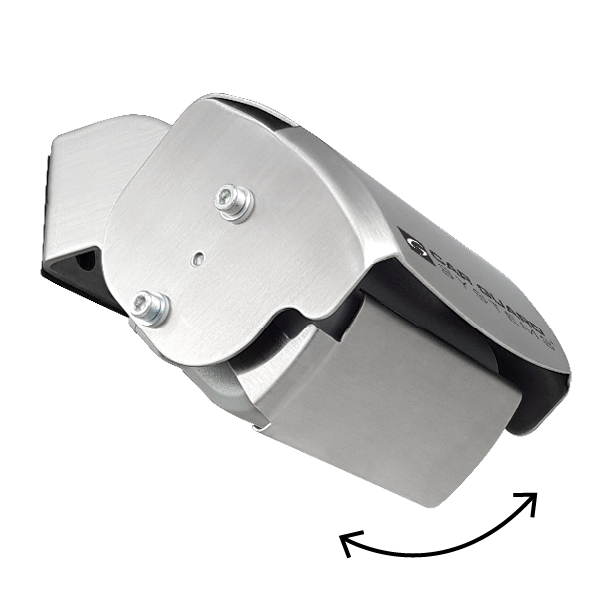

The camera is only 78 mm wide and is probably the smallest shutter camera on the market. The ingenious design allows the camera to be installed in any position: overhead on the ceiling, on the wall or on the floor.

The camera connection cable is invisible and can be installed completely waterproof.

Device information:

• Outstanding resolution: 610,000 pixels with 700 TV lines
• Power supply: DC 9-14V +/- 10%
• Lens detection range: 70° (vertical) / 94° (horizontal) 118° (diagonal)
• Designed according to protection class IP69K, the highest protection standard for vehicle components
• Protection against water with high-pressure cleaners
• Protection against permanent submersion
• Protection against foreign bodies: absolutely dust-tight
• Protection against contact and shocks

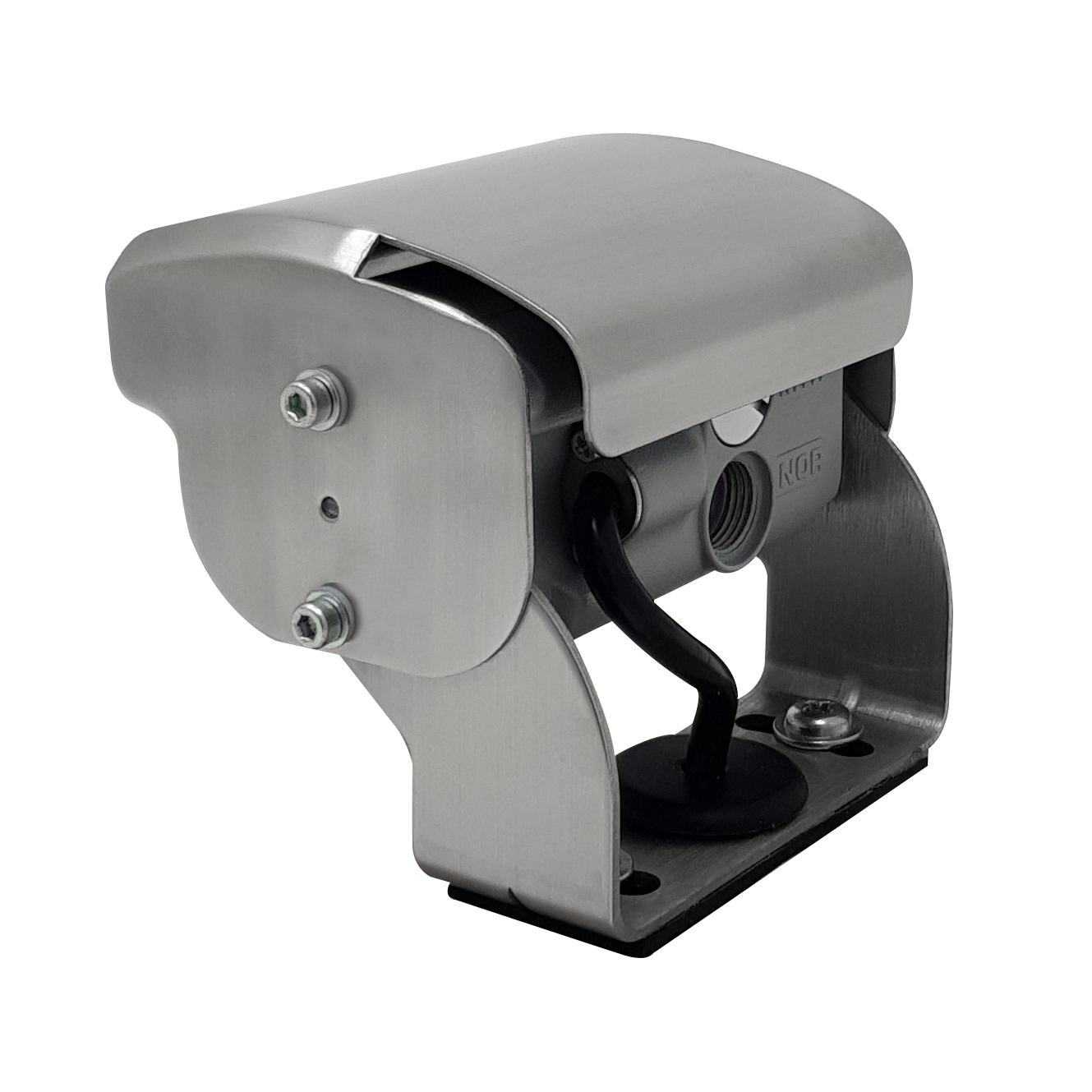

• the powder-coated silver die-cast aluminium housing is additionally protected by a corrosion-free sun shield, a motorised shutter and a 2 mm thick, torsion-resistant stainless steel mounting base
• Extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain
• Waterproof screw connections
• Protective switch-off in the event of blockage by foreign objects
• Image size: 1/3 inch Sharp CCD model RJ2341BA0PB
• Fast image transmission in real time

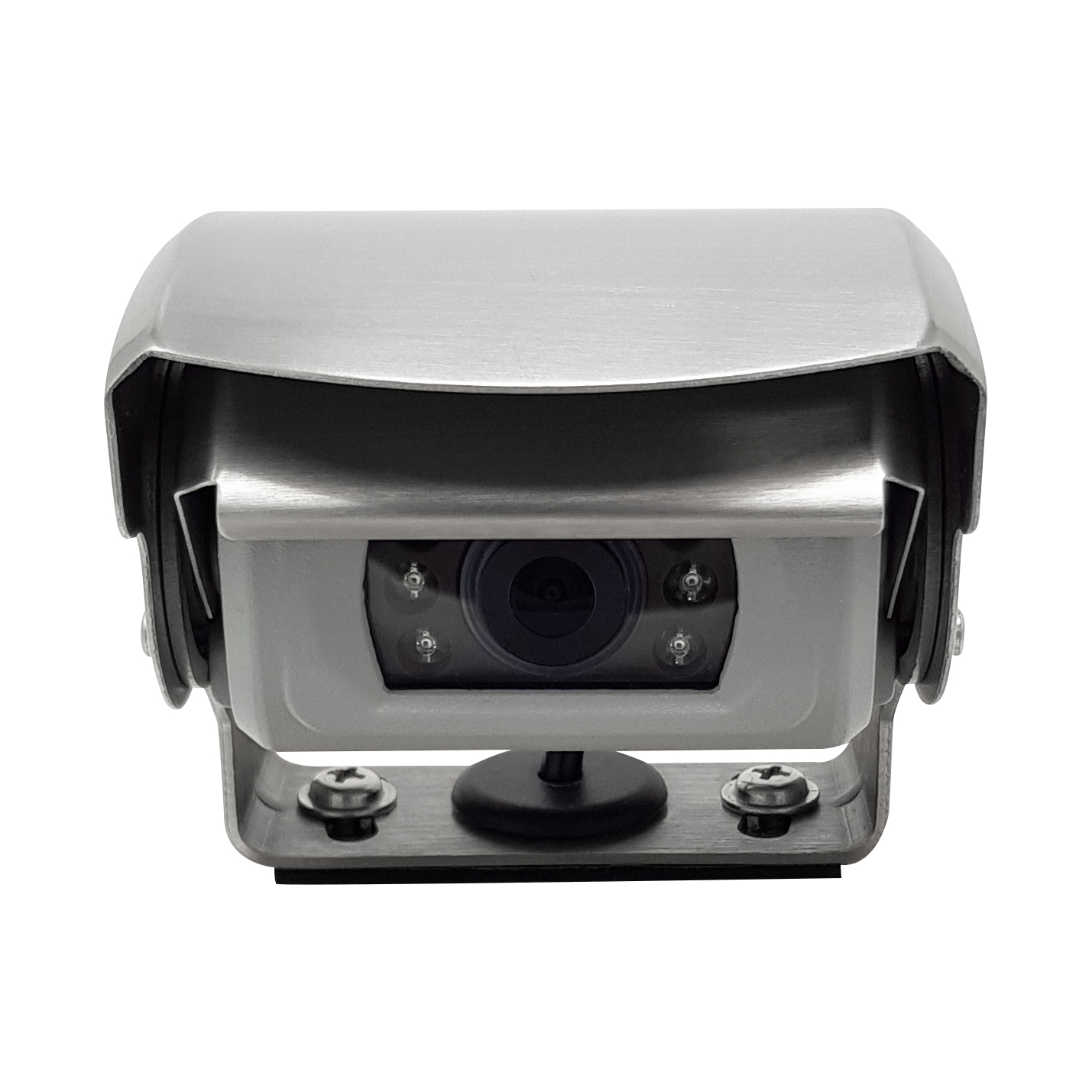

• 6 infrared LEDs of the highest quality guarantee a very good image even in the dark
• Night vision up to 12 m
• Light sensitivity: 0 lux (with IR at night), 0.1 lux (during the day)
• Vibration-resistant up to 5G
• Shockproof up to 80G
• Built-in microphone
• Heating against condensation: active below 10° Celsius
• the camera image can be mirrored
• automatic backlight compensation
• automatic brightness and white balance
• TV system: PAL (NTSC available on request)
• anti-fog lotus coating
• Focal length: f= 2.8 mm
• Sensor detection range: 4.9 mm (H) x 3.7 mm (V)
• Power consumption: < 2.5 W
• No voltage connection required at the rear of the vehicle
• Video signal output: 1 Vp-p, 75 Ohm
• Power consumption during operation: 88 mA during the day, 128 mA at night, maximum: 535 mA
• Operating temperature range: -20° C to 70° C, max. relative humidity 95%
• Standing temperature range: -40° C to 80° C, max. relative humidity 95%
• Scanning system: 2:1 interlace
• Synchronisation: internal
• Horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz
• Vertical synchronisation frequency: 50 Hz / 60 Hz
• Gamma: 0.45
• Gain control: automatic
• Signal-to-noise ratio: 48 dB
• Electronic shutter speed: 1/50 (PAL) ~ 1/100,000s

Product dimensions and weight:

• Product dimensions (LxWxH): 77.9 x 71.3 x 70 mm
• Weight: 360 g

Logistics:

• Item number: RUM22413P
• EAN: 4260456384765
• Packaging weight: 1558 g
• Packaging dimensions: 298x170x86 mm


Certificates:

• IP69K watertightness and dust resistance test (for high pressure/vapour jet cleaning, specific for road vehicles)
• Salt vapour test certificate
• ROHS
• CE
• E-Mark

Scope of delivery:

• Colour reversing camera (9-14V)
• 20 metre connection cable with 4-pin aviation connector
• Adapter to cinch plug
• Rubber sealing plate for the mounting base
• Sealing ring for the cable gland
• Screw set for fastening to the vehicle (2x for sheet metal/ 2x for PVC/ 2x with thread)
• Installation instructions
