As a parking aid and for monitoring rear traffic

REAR ANGEL VIEW RAV-MO-7WHD, 7" AHD monitor, WATERPROOF, 3 camera inputs, guidelines + RAV-F reversing camera, 1080P, 115°, 9-32V

Functional description:

This extremely robust and high-quality monitor with waterproof metal housing forms a fully-fledged premium reversing video system when combined with the reversing camera with shutter and outstanding full HD image quality.

3 camera inputs ensure that you have everything in view at all times and that safety is guaranteed. The 3 trigger inputs can be used to switch on the cameras via various triggers, with reversing view always taking priority. This monitor is waterproof and dustproof to IP68 and can display full images from 3 cameras.

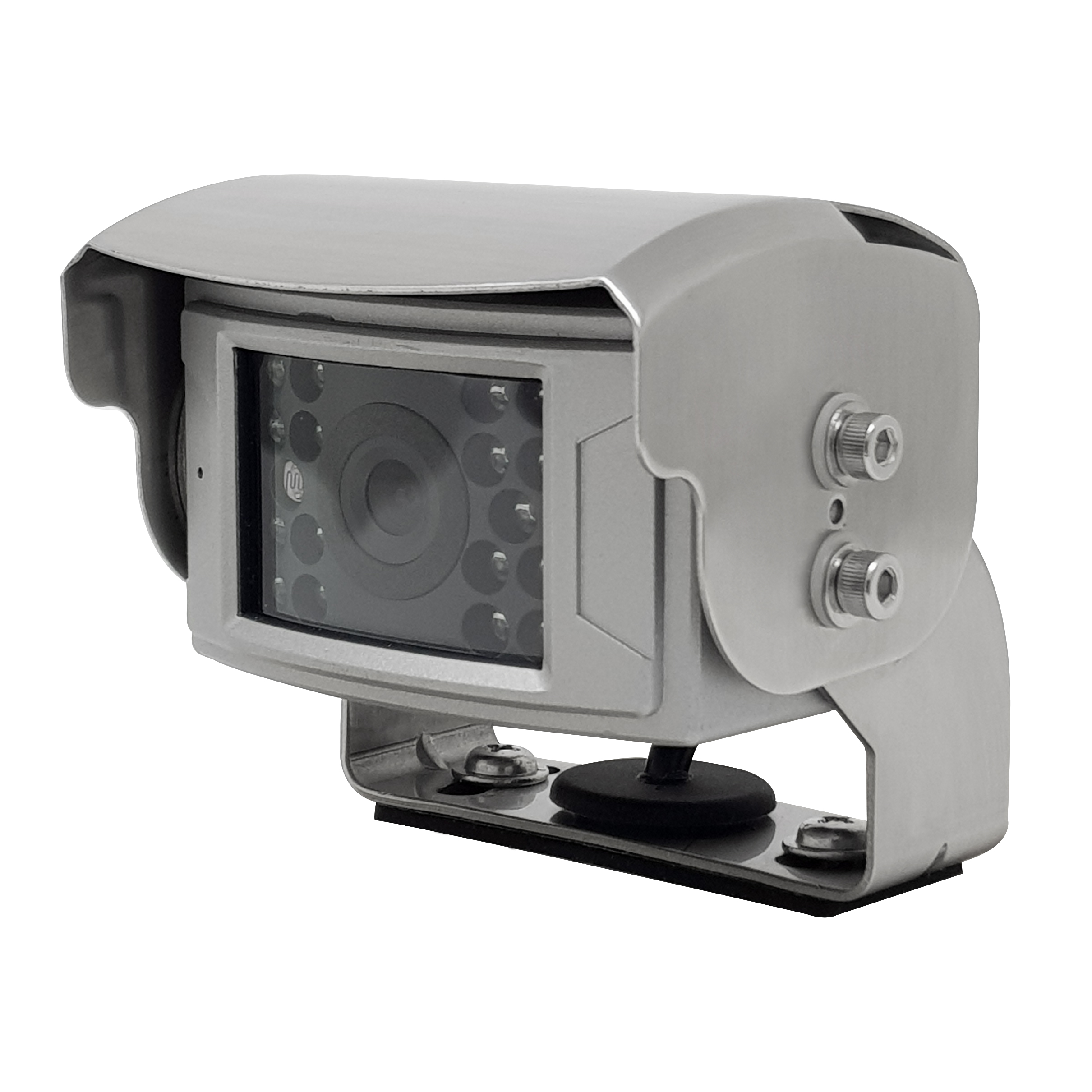

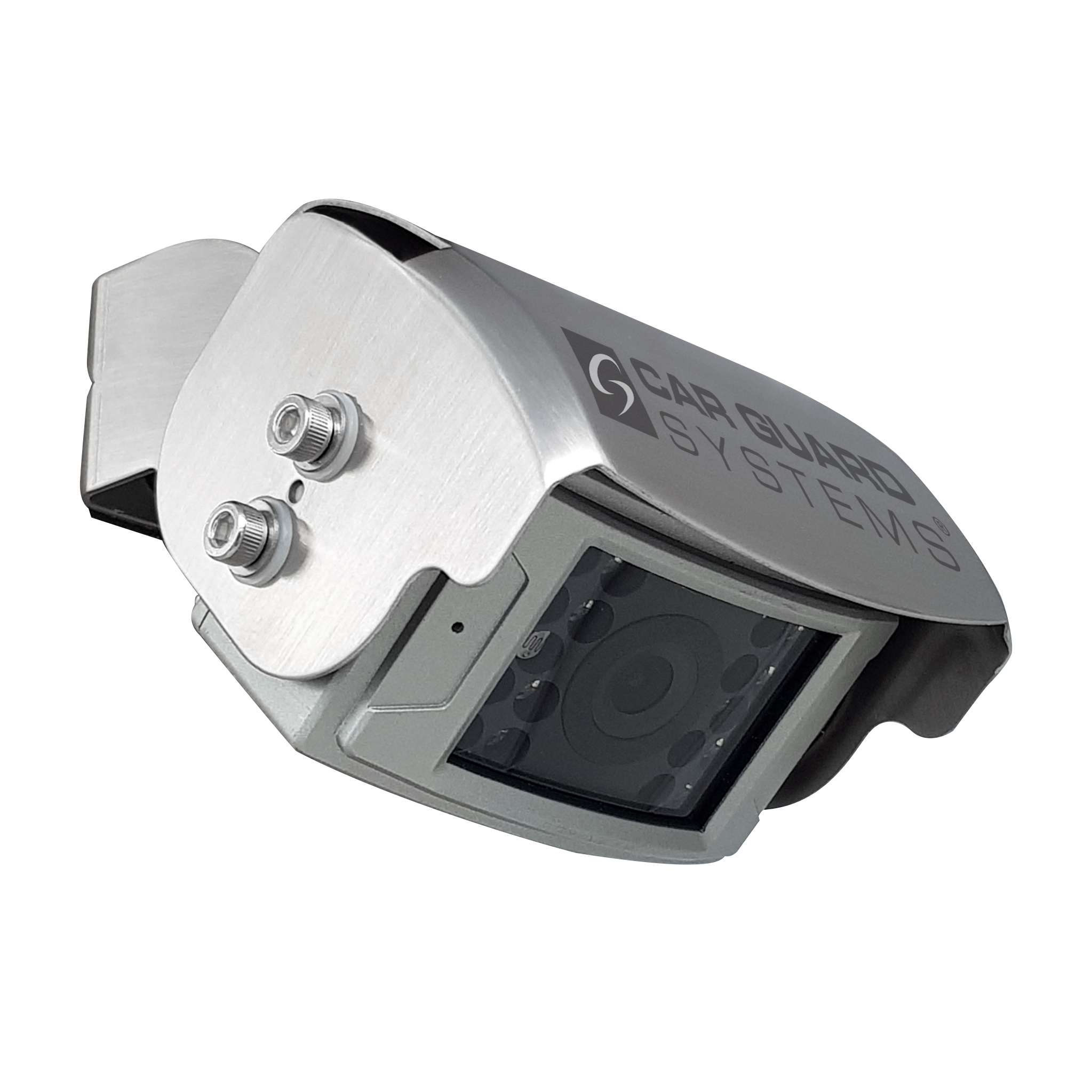

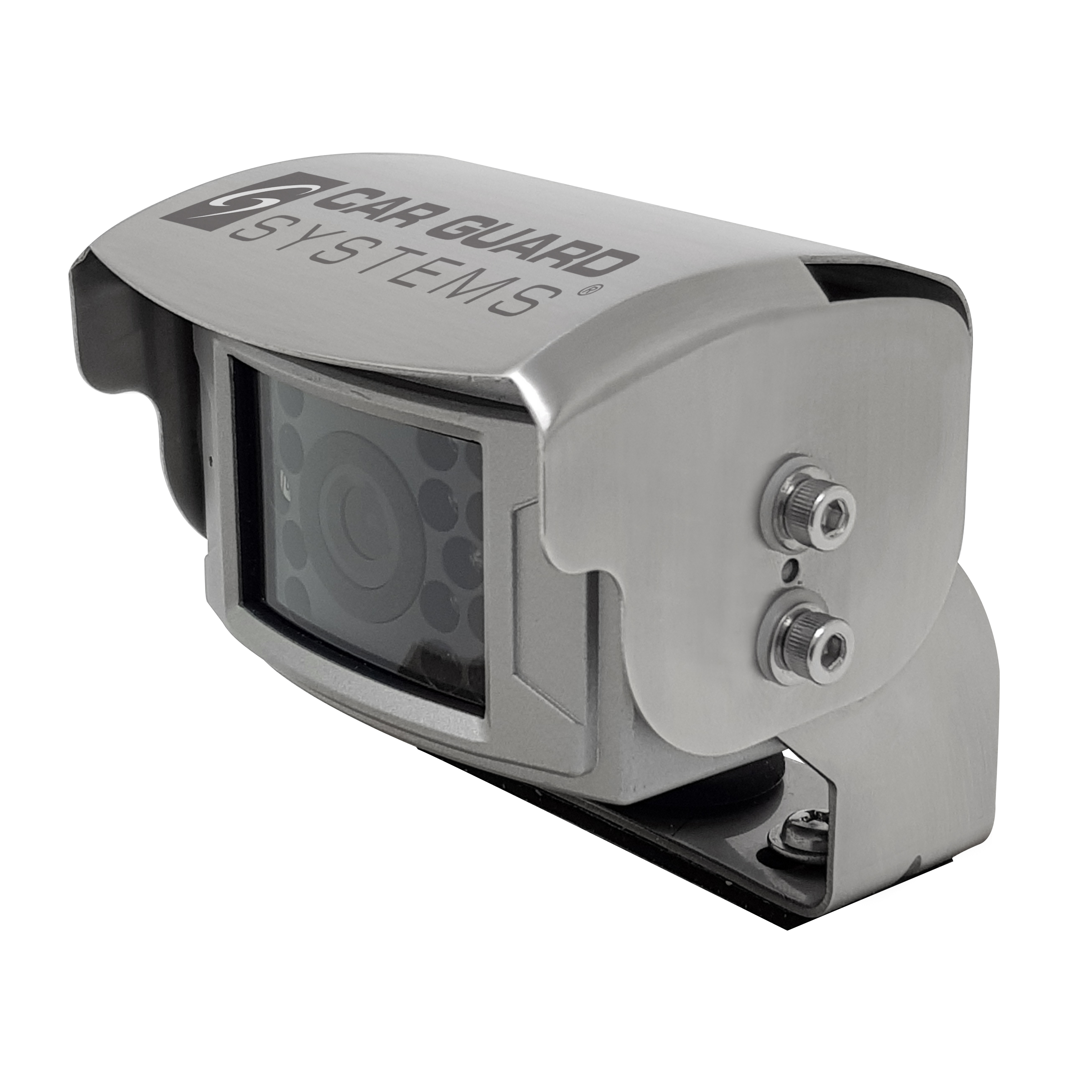

The ingenious design of the RAV-F reversing camera allows it to be installed in any position: overhead on the ceiling, on the wall or on the floor. The camera connection cable can be installed invisibly and is completely waterproof.

Device information Camera:

Outstanding resolution: 2,080,000 pixels with 1080 TV lines
Power supply: DC 9-32V +/- 10%
Lens detection range: 70° (vertical) / 95° (horizontal) 115° (diagonal)
Designed according to protection class IP69K, the highest protection standard for vehicle components
Protection against water with high-pressure cleaners
Protection against permanent submersion
Protection against foreign bodies: absolutely dust-tight
Protection against contact and shocks
the powder-coated silver die-cast aluminium housing is additionally protected by a corrosion-free sun shield and a 2 mm thick, torsion-resistant stainless steel mounting base
extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain
Waterproof screw connections
Image sensor size 700 TVL: 1/3 inch Sony CCD 810
1080p image sensor size: 1/3 inch Sony MIX 225
Fast image transmission in real time
17 infrared LEDs of the highest quality guarantee a very good image even in the dark
Night vision up to 12m light sensitivity: 0 lux (with IR at night), 0.1 lux (during the day)
Vibration-resistant up to 10G (700TVL) / up to 15G (1080p)
shock resistant up to 100G
Built-in microphone
Heating against condensation: active below 10° Celsius
automatic backlight compensation
automatic brightness and white balance (only for the analogue version)
TV system: PAL (NTSC available on request)
anti-fog lotus coating
Focal length: f=2.8 mm (700TVL) / f=3.6 mm (1080p)
Sensor detection range: 4.9 mm (H) x 3.7 mm (V)
Power consumption: < 2.5 W
No power connection required at the rear of the vehicle
Video signal output: 1 Vp-p, 75 Ohm
Power consumption during operation: 88 mA during the day, 128 mA at night, maximum: 535 mA
Operating temperature range: -20° C to 75° C, max. relative humidity 95%
Standing temperature range: -40° C to 80° C, max. relative humidity 95%
Scanning system: 2:1 interlace 700TVL / progressive 1080p
Synchronisation: internal
Horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz
Vertical synchronisation frequency: 50 Hz / 60 Hz
Gamma: 0.45
Gain control: automatic
Signal-to-noise ratio: 48 dB 700TVL / 52 dB 1080p
Electronic shutter speed: 1/50 (PAL) ~ 1/100,000 s

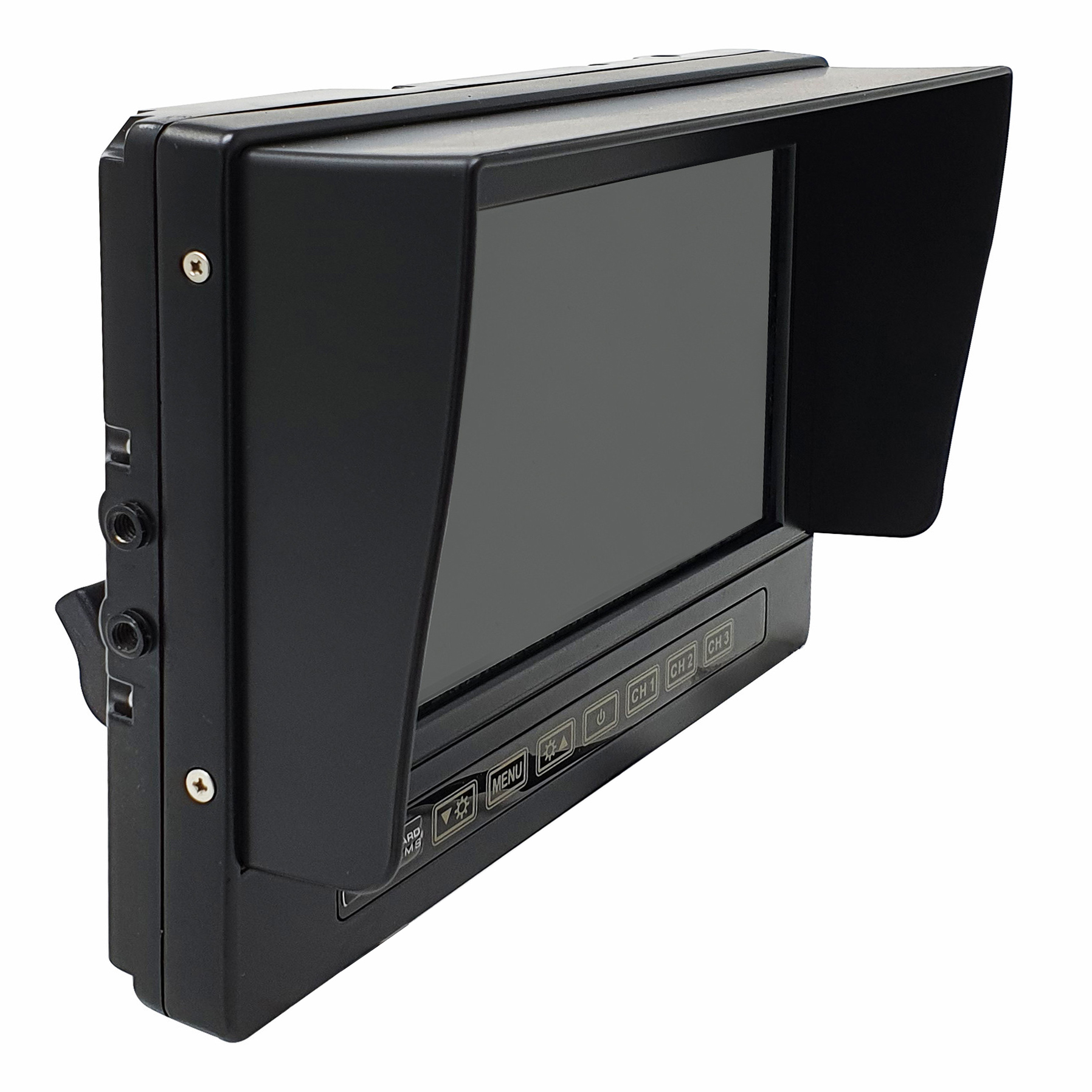

Device information Monitor:

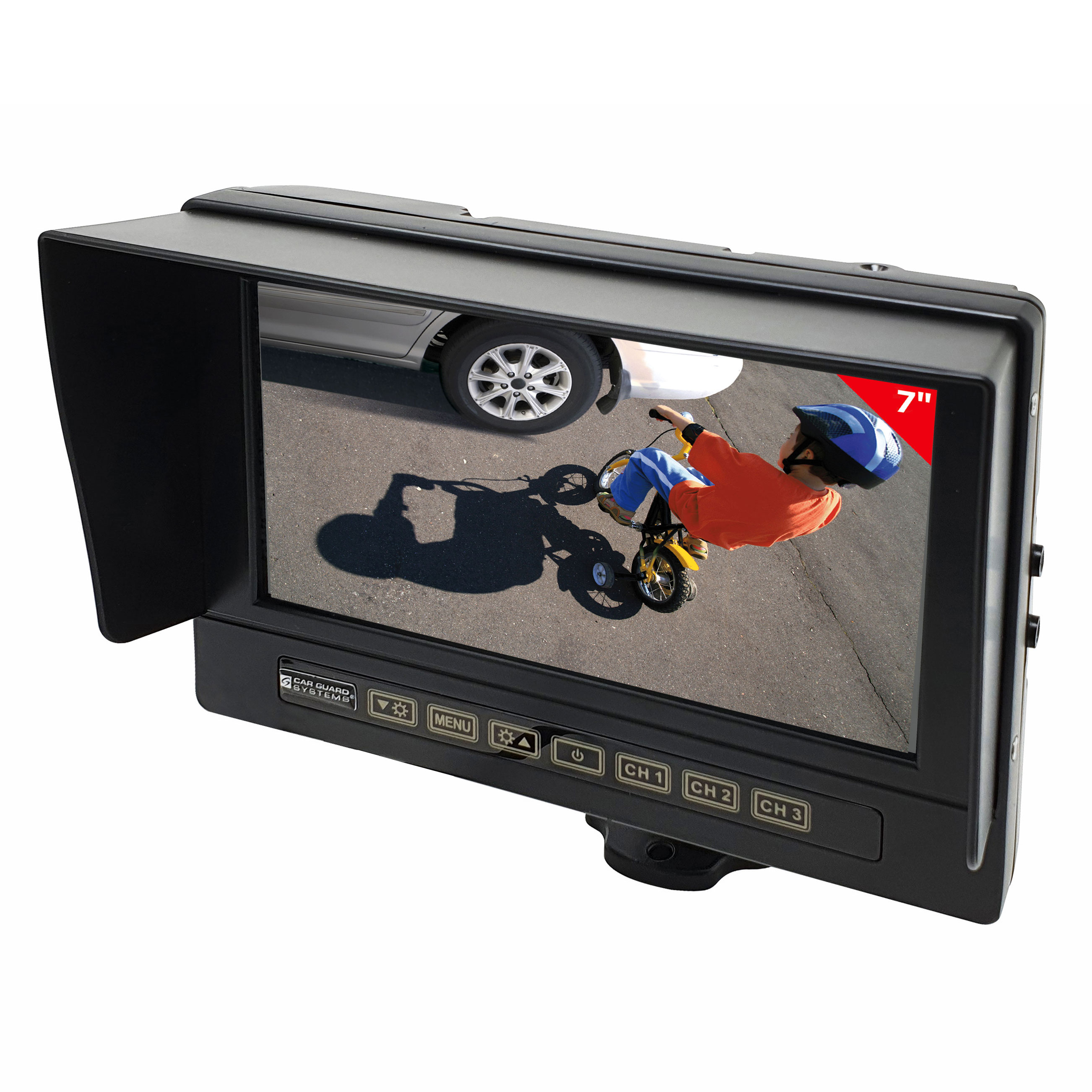

7" AHD LCD monitor with 3 camera inputs
Waterproof and dustproof to IP68
For all analogue and digital PAL and NTSC cameras, including Full HD cameras, 3 HD inputs (720P 25/30Hz, 720P 50/60Hz, 1080P 25/30Hz)
Resolution: 1024 x 600 pixels
Operating voltage 9 32 V DC
Very sturdy, waterproof (IP68) metal monitor housing

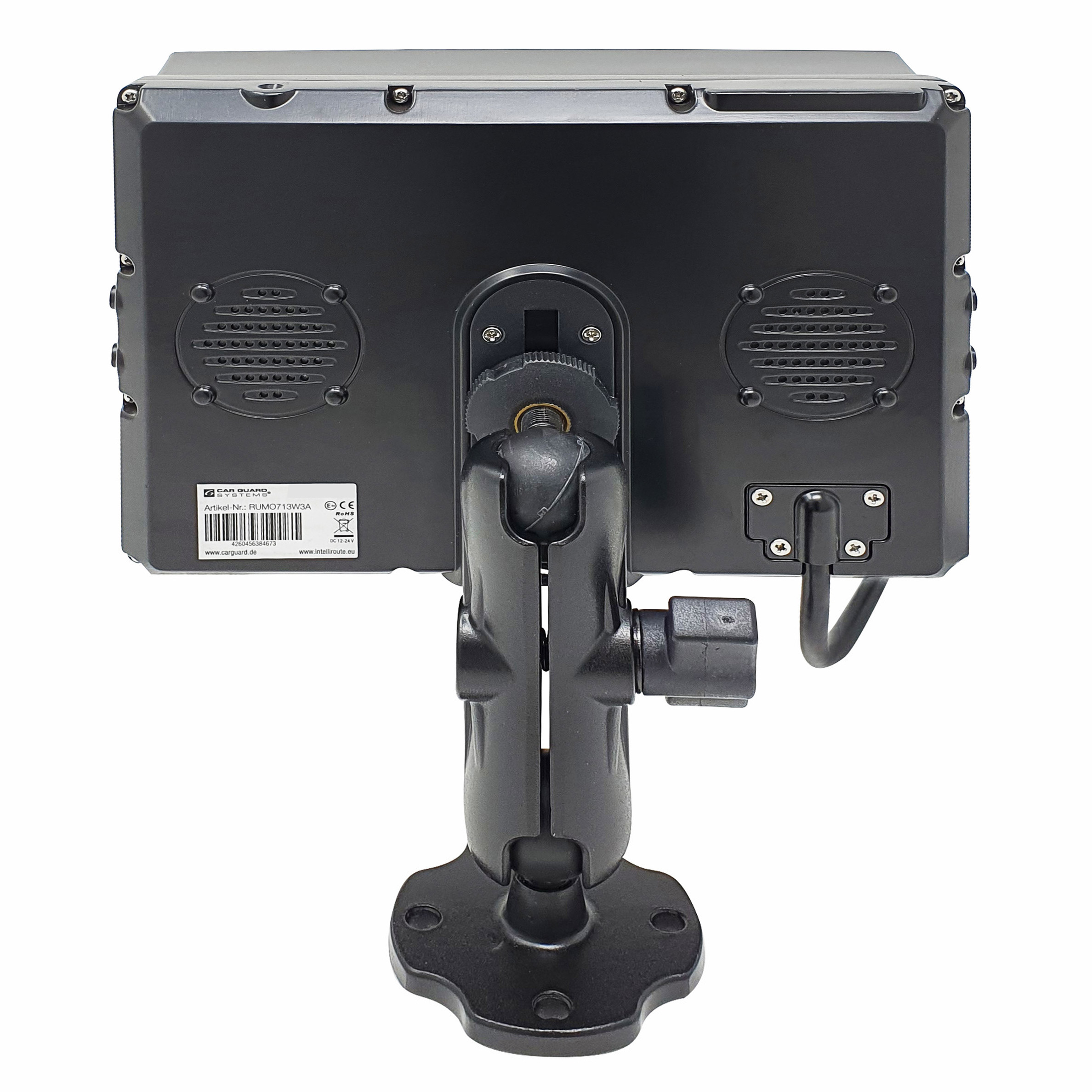

Metal base with ball joints at the top and bottom for optimum horizontal and vertical alignment (matching vehicle-specific dashboard brackets are optionally available)
3 inputs for automatically switching on the monitor, e.g. reversing lights, indicators, implements or dashboard switch (reversing light input has priority)
Guidelines for better estimation of distances (can be switched on/off)
ACC time: Delay hold time of the reversing camera image after switching off the signal on the reversing light cable. Setting options: Off, 1 15 s
Sleep/timer function: automatic switch-off of the monitor after 0 100 min, adjustable in 10 min increments
Cameras can be mirrored for front/rear use or left/right mounting, display of the left or right mirror image can be selected in each channel
Menu languages: English, German, French, Italian, Spanish
OSD setting options for brightness, contrast, colour saturation and volume
Optionally available adapters for standard pre-installed camera cables from brands such as Orlaco, Dometic, Brigade, Axion, Mekra and Car Guard Systems (including old models)
Picture format: 16:9
Brightness: 350 cd/m2
Horizontal viewing angle: left: 60°, right: 60°
Vertical picture angle: top: 40°, bottom: 60°
Maximum power consumption: 5W
Operating temperature range: -20° C to 70° C
Standing temperature range: -30° C to 80° C

Product dimensions and weight Monitor:

Dimensions with sun visor: H: 192mm/ W: 152mm/ D: 68mm
Weight: 800g

Product dimensions and weight Camera:

Length: 77.9 mm, width: 71.3 mm, height: 70 mm
Weight: 320g

Logistics and packaging:

Item number: RUMO717W3AB05
EAN: 4260456386424
Packaging dimensions: H: 305mm/ W: 202mm/ D: 176mm
Packaging weight: 2560g

Certificates:

IP69K waterproof and dust resistance test for the camera (for high pressure/vapour jet cleaning, specific for road vehicles)
IP68 for the monitor
Salt vapour test
ROHS
CE
E-Mark

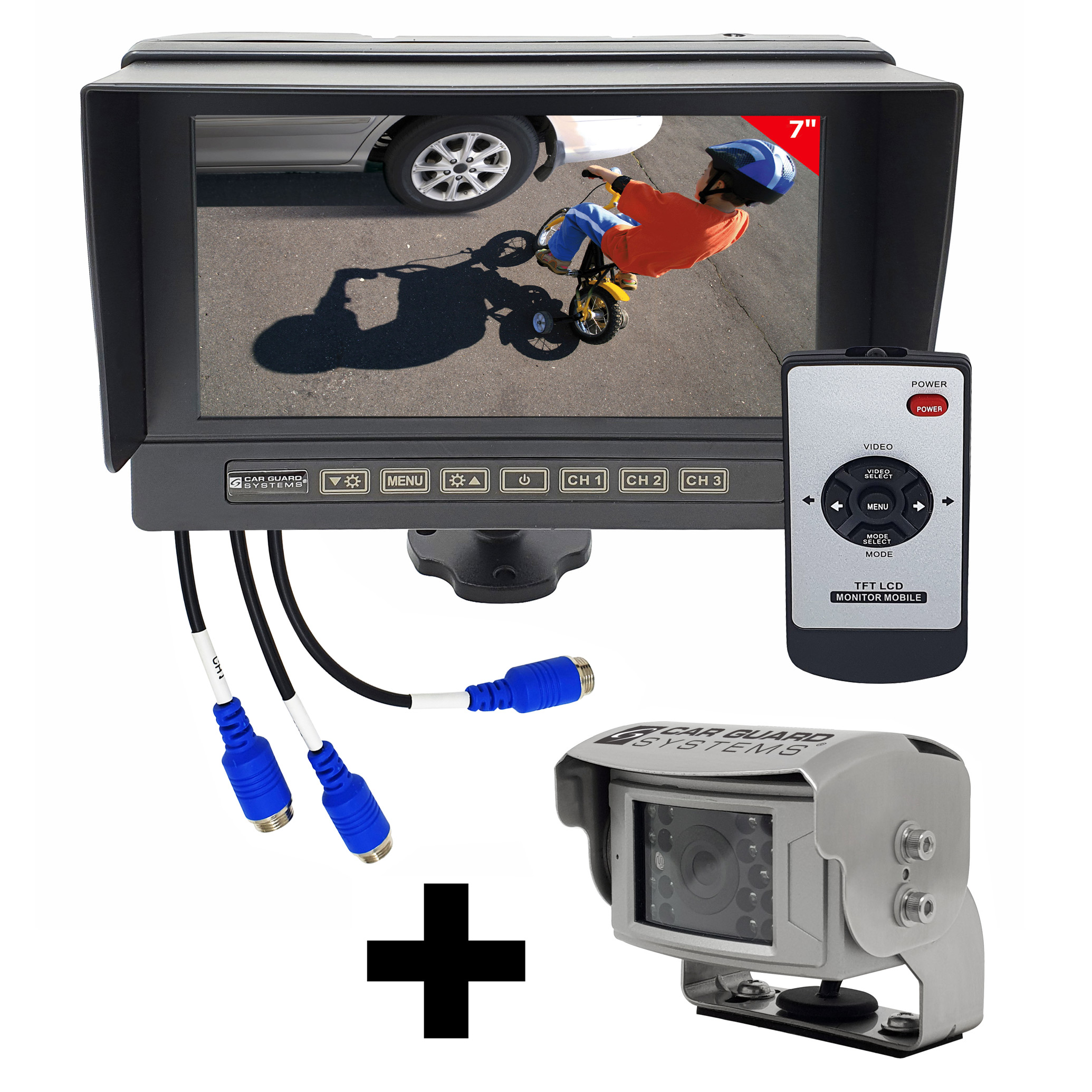

Scope of delivery:

1 x monitor
1 x connection wiring harness (art. no. RUERMO7173A-001)
1 x remote control (art. no. RUERMO7173A-002)
1 x monitor metal base with 2 ball joints (item no.: RUERMO7232A-001)
4 x self-tapping screws
1 x colour reversing camera (9-32V)
1 x 20 metre connection cable with 4-pin aviation connector
1 x Rubber sealing plate for the mounting base
1 x Sealing ring for the cable gland
6 x screw set for mounting on the vehicle (2x for sheet metal/ 2x for PVC/ 2x with thread)
1 x Allen key
1 x Installation and operating instructions
